group: 6GHDDW
potable water
heating
cooling
natural gas
vacuum
industry
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
15x8
dimensions
10x10x15 mm
weight
0.01 kg
packaging
bag (1 pce)
gtin
05022050561411
code
size
22x15
dimensions
11x23x23 mm
weight
0.02 kg
packaging
bag (1 pce)
gtin
05022050561480
code
size
28x15
dimensions
20x20x29 mm
weight
0.04 kg
packaging
bag (1 pce)
gtin
05022050561510
code
size
28x22
dimensions
13x13x30 mm
weight
0.03 kg
packaging
bag (1 pce)
gtin
05022050561534
code
size
42x28
dimensions
23x35x42 mm
weight
0.09 kg
packaging
bag (1 pce)
gtin
05022050561626
code
size
54x28
dimensions
30x55x55 mm
weight
0.19 kg
packaging
bag (1 pce)
gtin
05022050561640
code
size
54x42
dimensions
18x55x55 mm
weight
0.17 kg
packaging
bag (1 pce)
gtin
05022050561664
item

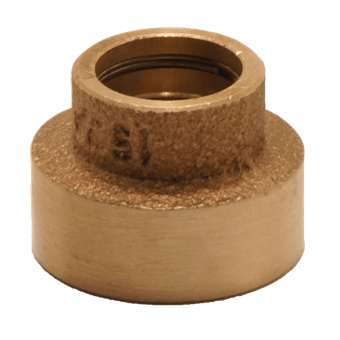

Pegler Yorkshire GHD Reducer
item number with gtin
6GHDDW
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.17 kg
dimensions
18x55x55 mm
materials
bronze (EN CC499K)
finishing
none
shape
straight, reducer, 90º
connection type
solder
pressure rating (PN)
PN 63
sealing
Metal sealing
max operating pressure liquid
69 bar
min. medium temperature
-196 °C
max medium temperature
200 °C
peak medium temperature
175 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Yorkshire GHD
product type
6GHDDW
UNSPS
40173600
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Flange compression class (PN)
value
PN 63
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-196°C - 175°C
label
Medium temperature (continuous) (imperial)
value
-320.8°F - 347°F
label
Max. operating pressure at 20 °C
value
69bar
label
Max. operating pressure at 20 °C (imperial)
value
1000.76psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
