item: 08576
The Yorkshire YP29R is a tee piece with a copper solder end and branch and one end with a reduced parallel female thread. By using Yorkshire in your piping installation, you are using a highly reputable product. Yorkshire provides a universal piping system suitable for domestic and commercial applications.
potable water
heating
cooling
commercial building
WRAS
BSI Kitemark KM 15121
item

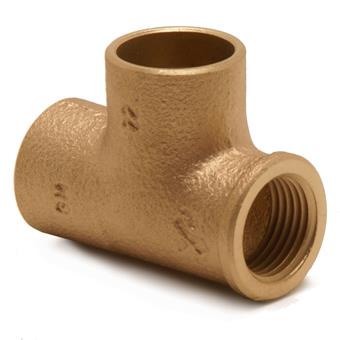

Pegler Yorkshire tee reduced threaded branch FFF 28xRp1 1/2x28"
item number with gtin
08576 (05022050293343)
product number with gtin
08576 (05022050085764)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
YP29R YP29R - Yorkshire Tee Female threadedsize
28xRp1 1/2x28"
weight
0.18 kg
dimensions
28x33x65 mm
packaging
bag (5 pce)
color
brass
materials
brass (CW603N)
finishing
none
shape
T-piece, 90
connection type
Rp - female thread cylindrical (BSPT), solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen
ETIM class
EC003025 Fitting with 3 connectionsHS code
74122000
brand
Pegler
series
Yorkshire
product type
YP29R
UNSPS
40174612
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Connection 2
value
Soldered sleeve
label
Flange compression class
value
PN 16
label
Material sealing
value
Metal-sealing
label
Main colour fitting
value
Brass
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
1.03kgCO2e
data source
TM65
