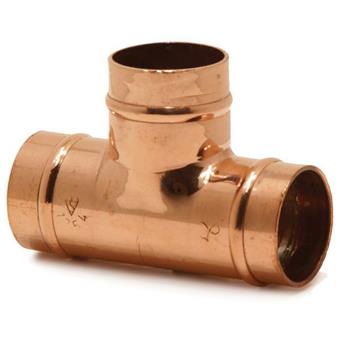

Pegler Yorkshire equal tee FFF 10

item: 08443

The Yorkshire YP24 is a equal tee piece with 3 copper solder ends. By using Yorkshire in your piping installation, you are using a highly reputable product. Yorkshire provides a universal piping system suitable for domestic and commercial applications.

  • No additional solder required
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

WRAS

WRAS

label

value

label

d1

value

10.0

label

l1

value

9

label

z1

value

4

label

d2

value

10.0

label

l2

value

9

label

z2

value

4

label

d3

value

10.0

label

l3

value

9

label

z3

value

4

drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

T-piece (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74121000

brand

Pegler

series

Yorkshire

product type

YP24

UNSPS

40174612

product info

item

Pegler Yorkshire equal tee FFF 10

item number with gtin

08443 (05022050286635)

product number with gtin

08443 (05022050084439)

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

item group

YP24 - Yorkshire Tee

size

10

weight

0.03 kg

dimensions

14x25x36 mm

packaging

bag (10 pce)

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

110 °C

peak medium temperature

110 °C

image for YP24

image | jpg

YP24

image for Diagram

diagram | jpg

Diagram

certifications | pdf

WRAS_ISR

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Outer pipe diameter connection 1

value

10mm

label

Outer pipe diameter connection 1 (imperial)

value

0.39"

label

Connection 1

value

Soldered sleeve

label

Outer pipe diameter connection 2

value

10mm

label

Outer pipe diameter connection 2 (imperial)

value

0.39"

label

Connection 2

value

Soldered sleeve

label

Outer pipe diameter connection 3

value

10mm

label

Outer pipe diameter connection 3 (imperial)

value

0.39"

label

Flange compression class

value

PN 16

label

Material sealing

value

Metal-sealing

label

Main colour fitting

value

Copper

label

Length of connection 1

value

9mm

label

Length of connection 1 (imperial)

value

0.35"

label

Working length connection 1

value

3.5mm

label

Working length connection 1 (imperial)

value

0.14"

label

Length of connection 2

value

9mm

label

Length of connection 2 (imperial)

value

0.35"

label

Working length connection 2

value

3.5mm

label

Working length connection 2 (imperial)

value

0.14"

label

Length of connection 3

value

9mm

label

Length of connection 3 (imperial)

value

0.35"

label

Working length connection 3

value

3.5mm

label

Working length connection 3 (imperial)

value

0.14"

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-40°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 230°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

carbon footprint (A-C) embodied carbon

0.13kgCO2e

data source

TM65
