item: 08377

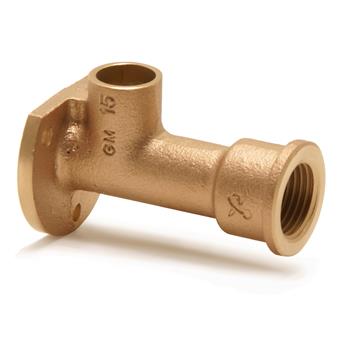

The Yorkshire YP15LN is a circular backplate elbow with a female copper solder end and a female Parallel thread end with an extended nose. By using Yorkshire in your piping installation, you are using a highly reputable product. Yorkshire provides a universal piping system suitable for domestic and commercial applications.
potable water
heating
cooling
commercial building
WRAS
color
brass
materials
brass (CW603N)
finishing
none
shape
Wall plate
connection type
Rp - female thread cylindrical (BSPT), solder
sealing
Metal sealing
product group
fittings
ETIM class
EC003099 Wall plate
HS code
74122000
brand
Pegler
series
Yorkshire
product type
YP15LN
UNSPS
40172812
item
Pegler Yorkshire backplate elbow with extened nose FF 15xRp1/2"
item number with gtin
08377 (05022050284716)
product number with gtin
08377 (05022050083777)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
YP15LN - Yorkshire Backplate Elbow
size
15xRp1/2"
weight
0.18 kg
dimensions
30x40x70 mm
packaging
bag (5 pce)
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Surface protection
value
Untreated
label
System specific
value
Yes
label
Connection
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Length from wall plate
value
70mm
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
0.99kgCO2e
data source
TM65
