item: 08351

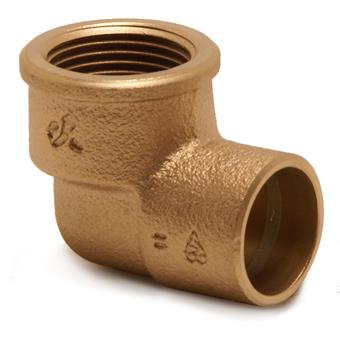

The Yorkshire YP14 is a elbow connector with a female copper solder end and a female Parallel threaded end. By using Yorkshire in your piping installation, you are using a highly reputable product. Yorkshire provides a universal piping system suitable for domestic and commercial applications.
potable water
heating
cooling
commercial building
BSI Kitemark KM 15121
UK water regulation 4
label
value
label
d1
value
15.0
label
DN1
value
1/2" (DN15)
label
l1
value
22
label
z1
value
12
label
d2
value
15.0
label
DN2
value
DN15
label
l2
value
26
label
z2
value
13
label
angle
value
90
item
Pegler Yorkshire threaded elbow FF 15xRp1/2"
item number with gtin
08351 (05022050284075)
product number with gtin
08351 (05022050083517)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
YP14 YP14 - Yorkshire Elbow 90° Connectorsize
15xRp1/2"
weight
0.06 kg
dimensions
28x30x40 mm
packaging
bag (10 pce)
color
bronze
materials
bronze (EN CC499K)
finishing
none
shape
Elbow, 90
connection type
Rp - female thread cylindrical (BSPT), solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Yorkshire
product type
YP14
UNSPS
40172812
label
value
label
etim-class
label
Material connection 1
value
Bronze
label
Material quality connection 1
value
CuSn5Zn5Pb2
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Bronze
label
Material quality connection 2
value
CuSn5Zn5Pb2
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Nominal diameter connection 1
value
1/2 inch (15)
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Nominal diameter connection 2
value
DN 15
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Bronze
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Length
value
28mm
label
Length (imperial)
value
1.1"
label
Length of connection 1
value
22mm
label
Length of connection 1 (imperial)
value
0.87"
label
Working length connection 1
value
12mm
label
Working length connection 1 (imperial)
value
0.47"
label
Length of connection 2
value
26mm
label
Length of connection 2 (imperial)
value
1.02"
label
Working length connection 2
value
13mm
label
Working length connection 2 (imperial)
value
0.51"
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
0.32kgCO2e
data source
TM65
