item: 08239

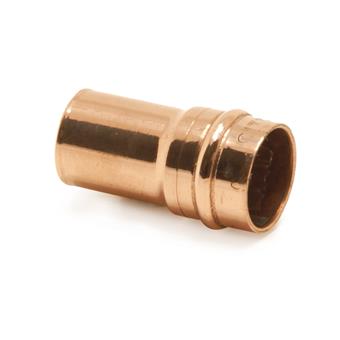

The Yorkshire YP9 is a straight connector with a male copper metric end for insertion into a fitting and a female imperial copper solder end for adapting imperial tube to a metric fitting. By using Yorkshire in your piping installation, you are using a highly reputable product. Yorkshire provides a universal piping system suitable for domestic and commercial applications.
potable water
heating
cooling
commercial building
BSI Kitemark KM 15121
UK water regulation 4
item
Pegler Yorkshire adaptor to imperial ØF Ø22x3/4"
item number with gtin
08239 (05022050280374)
product number with gtin
08239 (05022050082398)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
YP9 YP9 - Yorkshire Adaptor to imperialsize
Ø22x3/4
weight
0.03 kg
dimensions
22x24x40 mm
packaging
bag (10 pce)
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
straight
connection type
solder, solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74121000
brand
Pegler
series
Yorkshire
product type
YP9
UNSPS
40174912
label
value
label
etim-class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Length
value
22mm
label
Length (imperial)
value
0.87"
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
0.14kgCO2e
data source
TM65
