group: YP69F
potable water
heating
cooling
commercial building
WRAS
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/2"
dimensions
18x29x55 mm
weight
0.14 kg
packaging
bag (5 pce)
gtin
05022050300362
code
size
22xRp3/4"
dimensions
25x36x63 mm
weight
0.21 kg
packaging
bag (5 pce)
gtin
05022050300423
code
size
28xRp1"
dimensions
34x44x66 mm
weight
0.38 kg
packaging
bag (5 pce)
gtin
05022050300485
code
size
35xRp1 1/4"
dimensions
40x48x68 mm
weight
0.42 kg
packaging
bag (1 pce)
gtin
05022050088369
code
size
42xRp1 1/2"
dimensions
49x56x78 mm
weight
0.82 kg
packaging
bag (1 pce)
gtin
05022050088376
code
size
54xRp2"
dimensions
61x85x92 mm
weight
1.45 kg
packaging
bag (1 pce)
gtin
05022050088383
item

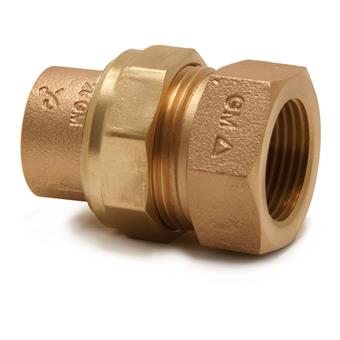

Yorkshire Straight Union
item number with gtin
YP69F
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
1.45 kg
dimensions
61x85x92 mm
color
brass
materials
brass (CW603N)
finishing
none
shape
straight
connection type
Rp - female thread cylindrical (BSPT), solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen (unions)
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Yorkshire
product type
YP69F
UNSPS
40174912
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
