Yorkshire Bent Union Adaptor

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

item number

08732

size

22xRp1"

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Elbow

connection type

compression, solder

sealing

Metal sealing

general

product group

fittings (unions)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Yorkshire

product type

YP64

UNSPS

40174912

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

110 °C

peak medium temperature

110 °C

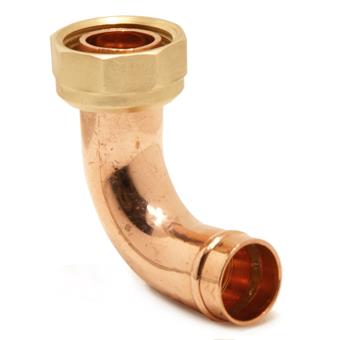

image for YP64

image | jpg

YP64

image for Diagram

diagram | jpg

Diagram

certifications | pdf

WRAS_ISR

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Compression ring

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Length

value

38mm

label

Medium temperature (continuous)

value

-40°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

08732

carbon footprint (A-C) embodied carbon

0.73kgCO2e

data source

TM65
