group: YP63

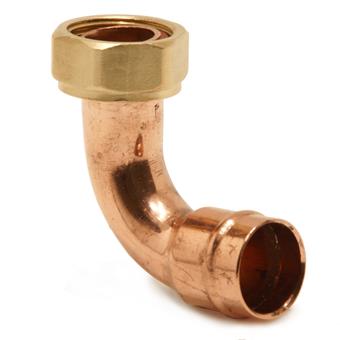

The Yorkshire YP63 is a bent tap connector with a copper tube end and a union nut connection. By using Yorkshire in your piping installation, you are using a highly reputable product. Yorkshire provides a universal piping system suitable for domestic and commercial applications.
potable water
heating
cooling
commercial building
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15xRp1/2"
dimensions
18x25x48 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050297044
item number
size
d1
l1
z1
slw1
d2
l2
z2
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
Elbow
connection type
compression, solder
sealing
Metal sealing
product group
fittings (unions)
ETIM class
EC003024 Fitting with 2 connections
HS code
74121000
brand
Pegler
series
Yorkshire
product type
YP63
UNSPS
40174912
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Compression ring
label
Outer pipe diameter connection 2
value
12.7mm
label
Outer pipe diameter connection 2 (imperial)
value
0.5"
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Length
value
18mm
label
Length of connection 1
value
33.5mm
label
Length of connection 1 (imperial)
value
1.32"
label
Working length connection 1
value
20.1mm
label
Working length connection 1 (imperial)
value
0.79"
label
Length of connection 2
value
28.5mm
label
Length of connection 2 (imperial)
value
1.12"
label
Working length connection 2
value
25.5mm
label
Working length connection 2 (imperial)
value
1"
label
Wrench width union nut
value
23.8mm
label
Wrench width union nut (imperial)
value
0.94"
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
