group: YP30
potable water
heating
cooling
commercial building
BSI Kitemark KM 15121
UK water regulation 4
code
size
dimensions
weight
packaging
gtin
code
size
15x15xRp1/2"
dimensions
19x32x51 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050293466
code
size
22x22xRp3/4"
dimensions
27x28x62 mm
weight
0.14 kg
packaging
bag (5 pce)
gtin
05022050293589
code
size
28x28xRp1"
dimensions
34x42x82 mm
weight
0.23 kg
packaging
bag (1 pce)
gtin
05022050085894
item

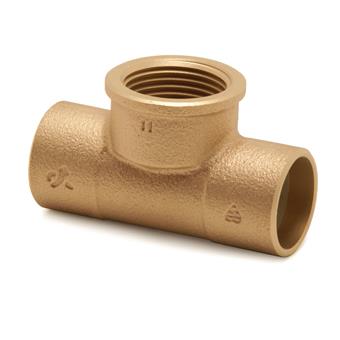

Yorkshire Tee Female threaded
item number with gtin
YP30
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.23 kg
dimensions
34x42x82 mm
color
bronze
materials
bronze (EN CC499K)
finishing
none
shape
T-piece, 90º
connection type
Rp - female thread cylindrical (BSPT), solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittings
ETIM class
EC003025 Fitting with 3 connectionsHS code
74122000
brand
Pegler
series
Yorkshire
product type
YP30
UNSPS
40174612
label
value
label
etim-class
label
Material connection 1
value
Bronze
label
Material quality connection 1
value
CuSn5Zn5Pb2
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Bronze
label
Material quality connection 2
value
CuSn5Zn5Pb2
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Connection 2
value
Soldered sleeve
label
Flange compression class
value
PN 16
label
Material sealing
value
Metal-sealing
label
Main colour fitting
value
Bronze
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
