group: YP3
potable water
heating
cooling
commercial building
BSI Kitemark KM 15121
UK water regulation 4
WRAS
code
size
dimensions
weight
packaging
gtin
code
size
8xR1/4"
dimensions
12x19x25 mm
weight
0.02 kg
packaging
bag (10 pce)
gtin
05022050274229
code
size
15xR1/2"
dimensions
20x20x33 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
05022050274489
code
size
22xR3/4"
dimensions
27x27x37 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050274656
code
size
28xR1"
dimensions
34x34x44 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
05022050274816
code
size
35xR1 1/4"
dimensions
41x42x52 mm
weight
0.21 kg
packaging
bag (1 pce)
gtin
05022050081193
code
size
42xR1 1/2"
dimensions
48x48x57 mm
weight
0.27 kg
packaging
bag (1 pce)
gtin
05022050081209
code
size
54xR2"
dimensions
60x61x69 mm
weight
0.48 kg
packaging
bag (1 pce)
gtin
05022050081216
code
size
67xR2 1/2"
dimensions
75x75x77 mm
weight
0.77 kg
packaging
bag (1 pce)
gtin
05022050081230
item

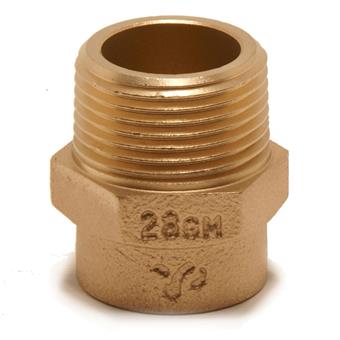

Yorkshire Straight Male Coupling
item number with gtin
YP3
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.77 kg
dimensions
75x75x77 mm
color
bronze, brass
materials
bronze, brass (EN CC499K, CW603N)
finishing
none
shape
straight
connection type
R - male thread gas conical (BSPT), solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Yorkshire
product type
YP3
UNSPS
40172612
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Connection 2
value
Soldered sleeve
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
