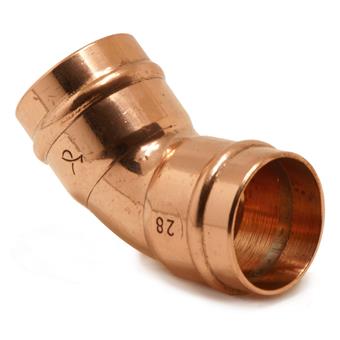

group: YP21
potable water
heating
cooling
commercial building
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
18x18x42 mm
weight
0.02 kg
packaging
bag (10 pce)
gtin
05022050285478
item number
size
22
dimensions
25x25x60 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050285591
item number
size
28
dimensions
30x30x70 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
05022050004260
item number
size
35
dimensions
38x38x85 mm
weight
0.12 kg
packaging
bag (2 pce)
gtin
05022050285775
item number
size
42
dimensions
45x45x100 mm
weight
0.16 kg
packaging
bag (1 pce)
gtin
05022050084170
item number
size
54
dimensions
57x57x125 mm
weight
0.26 kg
packaging
bag (1 pce)
gtin
05022050084187
item number
size
67
dimensions
76x76x135 mm
weight
1.05 kg
packaging
bag (1 pce)
gtin
05022050084194
item number
size
d1
l1
z1
d2
l2
z2
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
Elbow
connection type
solder
sealing
Metal sealing
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
brand
Pegler
series
Yorkshire
product type
YP21
UNSPS
40172103
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
carbon footprint (A-C) embodied carbon
