group: YP1R
potable water
heating
cooling
commercial building
WRAS
BSI Kitemark KM 812318
code
size
dimensions
weight
packaging
gtin
code
size
10x8
dimensions
25x10x10 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050266132
code
size
15x8
dimensions
30x15x15 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050266378
code
size
15x10
dimensions
31x15x15 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050266552
code
size
22x15
dimensions
18x25x41 mm
weight
0.02 kg
packaging
bag (10 pce)
gtin
05022050267245
code
size
28x15
dimensions
46x28x28 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050267597
code
size
28x22
dimensions
47x28x28 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
05022050267771
code
size
35x22
dimensions
57x35x35 mm
weight
0.09 kg
packaging
bag (10 pce)
gtin
05022050267948
code
size
35x28
dimensions
58x35x35 mm
weight
0.09 kg
packaging
bag (10 pce)
gtin
05022050268143
code
size
42x28
dimensions
66x42x42 mm
weight
0.12 kg
packaging
bag (1 pce)
gtin
05022050080691
code
size
42x35
dimensions
67x42x42 mm
weight
0.13 kg
packaging
bag (1 pce)
gtin
05022050080707
code
size
54x42
dimensions
79x54x54 mm
weight
0.19 kg
packaging
bag (1 pce)
gtin
05022050080721
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
item

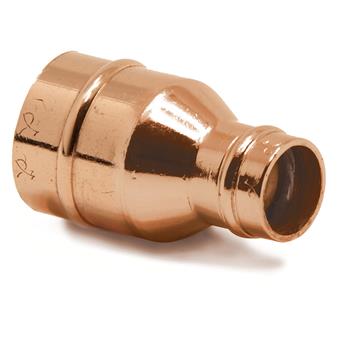

Yorkshire Reducing Coupling
item number with gtin
YP1R
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.19 kg
dimensions
79x54x54 mm
color
copper
materials
copper (CW024A (UNS C12200))
finishing
none
shape
straight
connection type
solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74121000
brand
Pegler
series
Yorkshire
product type
YP1R
UNSPS
40173613
label
value
label
etim-class
label
Material connection 1
value
Copper
label
Material quality connection 1
value
Cu-DHP (CW024A)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Copper
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
