group: YP12R
potable water
heating
cooling
commercial building
WRAS
BSI Kitemark KM 15121
code
size
dimensions
weight
packaging
gtin
code
size
22x15
dimensions
25x27x60 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
05022050282781
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
angle
item

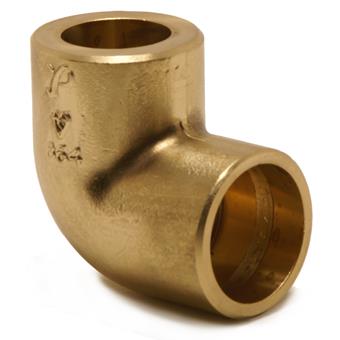

Yorkshire Reducing Elbow 90°
item number with gtin
YP12R (05022050282781)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
22x15
weight
0.1 kg
dimensions
25x27x60 mm
color
brass
materials
brass (CW603N)
finishing
none
shape
Elbow, 90º
connection type
solder
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Yorkshire
product type
YP12R
UNSPS
40172812
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb3 (CW603N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb3 (CW603N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Nominal diameter connection 1
value
DN 20
label
Outer pipe diameter connection 1
value
22mm
label
Outer pipe diameter connection 1 (imperial)
value
0.87"
label
Connection 1
value
Soldered sleeve
label
Nominal diameter connection 2
value
DN 15
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Connection 2
value
Soldered sleeve
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Length
value
25mm
label
Length (imperial)
value
0.98"
label
Length of connection 1
value
30mm
label
Length of connection 1 (imperial)
value
1.18"
label
Working length connection 1
value
11mm
label
Working length connection 1 (imperial)
value
0.43"
label
Length of connection 2
value
28mm
label
Length of connection 2 (imperial)
value
1.1"
label
Working length connection 2
value
13mm
label
Working length connection 2 (imperial)
value
0.51"
label
Medium temperature (continuous)
value
-40°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
