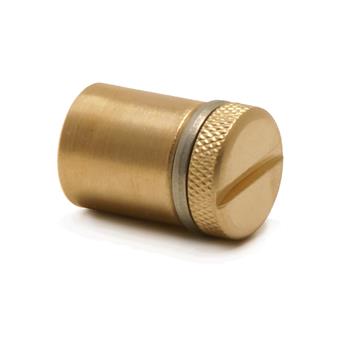

Yorkshire air release valve

group: RV35

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

WRAS

WRAS

item number

size

d1

l1

z1

D1

item number

08620

size

15

d1

15.0

l1

22

z1

6

D1

16

technical drawing for product

characteristics

color

brass

materials

brass (CW603N)

finishing

none

shape

End coupling (0º)

connection type

sleeve

pressure rating (PN)

PN 16

sealing

Metal sealing

general

product group

valves (pressure relief valves)

ETIM class

EC003023 Fitting with 1 connection

HS code

84818039

brand

Pegler

series

Yorkshire Valve

product type

RV35

UNSPS

40172412

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

110 °C

image for RV35

image | jpg

RV35

image for Diagram

diagram | jpg

Diagram

certifications | pdf

WRAS_ISR

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb3 (CW603N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

System specific

value

Yes

label

Outer pipe diameter connection 1

value

15mm

label

Outer pipe diameter connection 1 (imperial)

value

0.59"

label

Connection 1

value

Slide sleeve

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Material sealing

value

Metal-sealing

label

Main colour fitting

value

Brass

label

Length of connection 1

value

22mm

label

Length of connection 1 (imperial)

value

0.87"

label

Working length connection 1

value

6mm

label

Working length connection 1 (imperial)

value

0.24"

label

Medium temperature (continuous)

value

-40°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 230°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
