group: 6GHD
potable water
natural gas
heating
cooling
vacuum
commercial building
industry
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
15x8
dimensions
10x15x15 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050312419
item number
size
15x12
dimensions
10x15x15 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050312532
item number
size
22x15
dimensions
12x23x23 mm
weight
0.02 kg
packaging
bag (10 pce)
gtin
05022050312655
item number
size
28x15
dimensions
20x21x29 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050312778
item number
size
28x22
dimensions
13x23x23 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050312891
item number
size
35x28
dimensions
15x35x35 mm
weight
0.04 kg
packaging
bag (1 pce)
gtin
05022050561565
item number
size
42x28
dimensions
23x35x42 mm
weight
0.09 kg
packaging
bag (10 pce)
gtin
05022050561602
item number
size
42x35
dimensions
17x42x42 mm
weight
0.06 kg
packaging
bag (1 pce)
gtin
05022050561619
item number
size
54x28
dimensions
30x55x55 mm
weight
0.19 kg
packaging
bag (1 pce)
gtin
05022050561633
item number
size
54x42
dimensions
20x55x55 mm
weight
0.17 kg
packaging
bag (1 pce)
gtin
05022050561657
item number
size
item number
56140size
15x8
item number
56142size
15x12
item number
56147size
22x15
item number
56150size
28x15
item number
56152size
28x22
item number
56156size
35x28
item number
56160size
42x28
item number
56161size
42x35
item number
56163size
54x28
item number
56165size
54x42
materials
bronze (EN CC499K)
finishing
none
shape

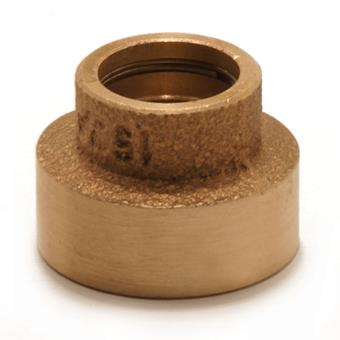

straight, reducer (90º)
connection type
solder
sealing
Metal sealing
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
Pegler
series
Yorkshire GHD
product type
6GHD
UNSPS
40173600
max operating pressure liquid
69 bar
min. medium temperature
-196 °C
max medium temperature
200 °C
peak medium temperature
175 °C
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
Yes
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Flange compression class (PN)
value
PN 63
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-196°C - 175°C
label
Medium temperature (continuous) (imperial)
value
-320.8°F - 347°F
label
Max. operating pressure at 20 °C
value
69bar
label
Max. operating pressure at 20 °C (imperial)
value
1000.76psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
