group: 69GHDDW
potable water
heating
cooling
natural gas
vacuum
industry
commercial building
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
15xR1/2"
dimensions
35x35x62 mm
weight
0.19 kg
packaging
bag (1 pce)
gtin
05022050565686
code
size
28xR1"
dimensions
25x40x47 mm
weight
0.53 kg
packaging
bag (1 pce)
gtin
05022050565693
item

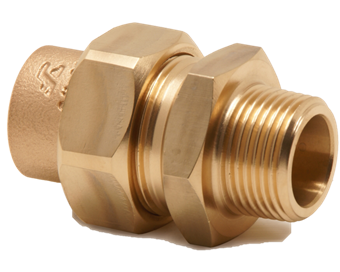

Yorkshire striaght male union connector degreased
item number with gtin
69GHDDW
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.53 kg
dimensions
25x40x47 mm
materials
bronze (EN CC499K)
finishing
none
shape
straight, 90º
connection type
solder
pressure rating (PN)
PN 63
sealing
Metal sealing
max operating pressure liquid
69 bar
min. medium temperature
-196 °C
max medium temperature
200 °C
peak medium temperature
175 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
74122000
brand
Pegler
series
Yorkshire GHD
product type
69GHDDW
UNSPS
40174900
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Flange compression class (PN)
value
PN 63
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-196°C - 175°C
label
Medium temperature (continuous) (imperial)
value
-320.8°F - 347°F
label
Max. operating pressure at 20 °C
value
69bar
label
Max. operating pressure at 20 °C (imperial)
value
1000.76psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
