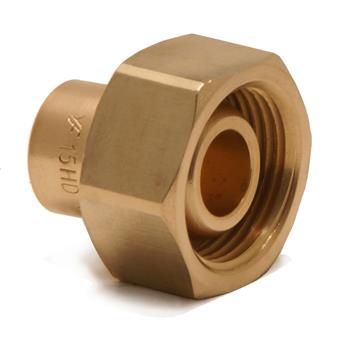

Yorkshire Straight union adaptor

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

56536

size

8xRp3/8"

dimensions

11x25x25 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050318121

item number

56542

size

28xRp1 1/4"

dimensions

20x34x48 mm

weight

0.25 kg

packaging

bag (1 pce)

gtin

05022050565426

item number

56538

size

12xRp1/2"

dimensions

17x27x27 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

05022050318183

item number

56539

size

15xRp3/4"

dimensions

20x28x33 mm

weight

0.1 kg

packaging

bag (10 pce)

gtin

05022050318305

item number

56541

size

22xRp1"

dimensions

28x32x42 mm

weight

0.19 kg

packaging

bag (5 pce)

gtin

05022050318428

item number

56543

size

35xRp1 1/2"

dimensions

43x43x64 mm

weight

0.37 kg

packaging

bag (1 pce)

gtin

05022050565433

item number

size

item number

56536

size

8xRp3/8"

item number

56542

size

28xRp1 1/4"

item number

56538

size

12xRp1/2"

item number

56539

size

15xRp3/4"

item number

56541

size

22xRp1"

item number

56543

size

35xRp1 1/2"

technical drawing for product

characteristics

materials

bronze (EN CC499K)

finishing

none

shape

straight (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Yorkshire GHD

product type

68GHD

UNSPS

40174900

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-196 °C

max medium temperature

200 °C

peak medium temperature

175 °C

image for 68GHD

image | jpg

68GHD

image for Diagram

diagram | jpg

Diagram

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-196°C - 175°C

label

Medium temperature (continuous) (imperial)

value

-320.8°F - 347°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

56538

carbon footprint (A-C) embodied carbon

0.37kgCO2e

data source

TM65

item number

56539

carbon footprint (A-C) embodied carbon

0.53kgCO2e

data source

TM65

item number

56541

carbon footprint (A-C) embodied carbon

1.01kgCO2e

data source

TM65

item number

56543

carbon footprint (A-C) embodied carbon

1.99kgCO2e

data source

TM65
