Yorkshire male union connector

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

56510

size

15xRp1/2"

dimensions

40x50x80 mm

weight

0.23 kg

packaging

bag (5 pce)

gtin

05022050317766

item number

56512

size

22xRp3/4"

dimensions

25x50x110 mm

weight

0.42 kg

packaging

bag (5 pce)

gtin

05022050317889

item number

56513

size

28xRp1"

dimensions

35x49x135 mm

weight

0.64 kg

packaging

bag (1 pce)

gtin

05022050565136

item number

size

angle

item number

56510

size

15xRp1/2"

angle

90

item number

56512

size

22xRp3/4"

angle

90

item number

56513

size

28xRp1"

angle

90

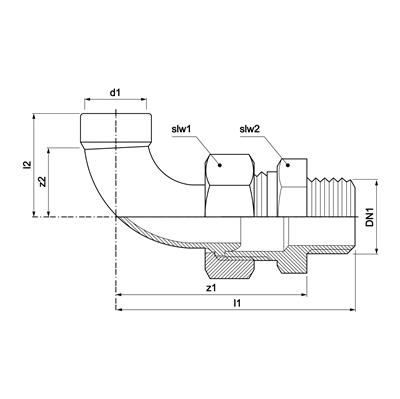

technical drawing for product

characteristics

materials

bronze (EN CC499K)

finishing

none

shape

Elbow (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Yorkshire GHD

product type

65GHD

UNSPS

40174900

technical

max operating pressure liquid

69 bar

min. medium temperature

-196 °C

max medium temperature

200 °C

peak medium temperature

175 °C

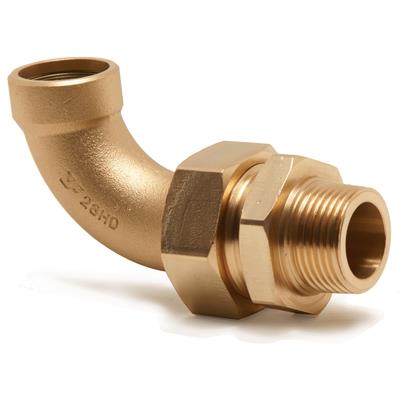

image for 65GHD

image | jpg

65GHD

image for Diagram

diagram | jpg

Diagram

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Flange compression class (PN)

value

PN 63

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-196°C - 175°C

label

Medium temperature (continuous) (imperial)

value

-320.8°F - 347°F

label

Max. operating pressure at 20 °C

value

69bar

label

Max. operating pressure at 20 °C (imperial)

value

1000.76psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

56510

carbon footprint (A-C) embodied carbon

1.25kgCO2e

data source

TM65

item number

56512

carbon footprint (A-C) embodied carbon

2.32kgCO2e

data source

TM65

item number

56513

carbon footprint (A-C) embodied carbon

3.51kgCO2e

data source

TM65
