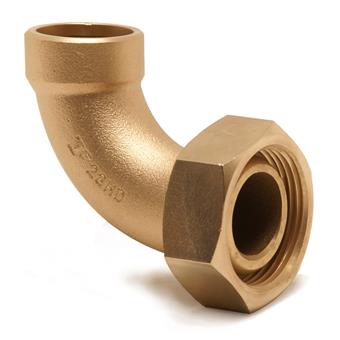

Yorkshire Bent union adaptor

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

56485

size

8xRp3/8"

dimensions

12x22x45 mm

weight

0.05 kg

packaging

bag (10 pce)

gtin

05022050317346

item number

56491

size

28xRp1 1/4"

dimensions

50x65x75 mm

weight

0.37 kg

packaging

bag (1 pce)

gtin

05022050564917

item number

56487

size

12xRp1/2"

dimensions

16x28x60 mm

weight

0.09 kg

packaging

bag (10 pce)

gtin

05022050317407

item number

56488

size

15xRp3/4"

dimensions

25x32x65 mm

weight

0.14 kg

packaging

bag (10 pce)

gtin

05022050317469

item number

56490

size

22xRp1"

dimensions

45x60x68 mm

weight

0.26 kg

packaging

bag (5 pce)

gtin

05022050317520

item number

size

angle

item number

56485

size

8xRp3/8"

angle

90

item number

56491

size

28xRp1 1/4"

angle

90

item number

56487

size

12xRp1/2"

angle

90

item number

56488

size

15xRp3/4"

angle

90

item number

56490

size

22xRp1"

angle

90

technical drawing for product

characteristics

materials

bronze (EN CC499K)

finishing

none

shape

Elbow (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Yorkshire GHD

product type

64GHD

UNSPS

40174900

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-196 °C

max medium temperature

200 °C

peak medium temperature

175 °C

image for 64GHD

image | jpg

64GHD

image for Diagram

diagram | jpg

Diagram

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-196°C - 175°C

label

Medium temperature (continuous) (imperial)

value

-320.8°F - 347°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number
