group: 61GHD
potable water
heating
cooling
natural gas
vacuum
industry
commercial building
no approvals available
code
size

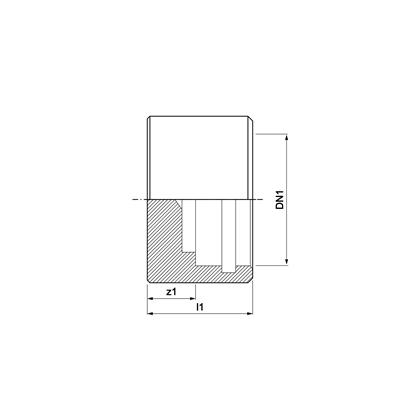

dimensions
weight
packaging
gtin
code
size
code
size
15
item

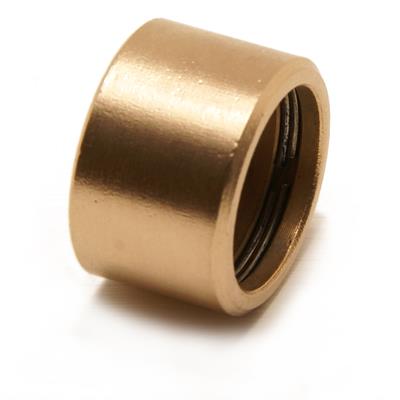

Yorkshire stop end
item number with gtin
61GHD (05022050317223)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15
weight
0.02 kg
dimensions
13x18x18 mm
materials
bronze (EN CC499K)
finishing
none
shape
straight, 90º
connection type
solder
pressure rating (PN)
PN 63
sealing
Metal sealing
max operating pressure liquid
69 bar
min. medium temperature
-196 °C
max medium temperature
200 °C
peak medium temperature
175 °C
product group
fittingen
ETIM class
EC003023 Fitting with 1 connectionHS code
74122000
brand
Pegler
series
Yorkshire GHD
product type
61GHD
UNSPS
40172400
label
value
label
etim-class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Max. operating pressure at 20 °C
value
69bar
label
Max. operating pressure at 20 °C (imperial)
value
1000.76psi
label
Material sealing
value
Metal-sealing
label
Medium temperature (continuous)
value
-196°C - 175°C
label
Medium temperature (continuous) (imperial)
value
-320.8°F - 347°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
