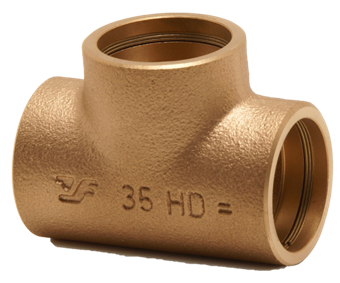

Pegler Yorkshire GHD Equal Tee

group: 24GHDDW

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

item number

56339DW

size

15

item number

56341DW

size

22

item number

56342DW

size

28

item number

56344DW

size

42

technical drawing for product

characteristics

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

T-piece (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

Pegler

series

Yorkshire GHD

product type

24GHDDW

UNSPS

40174600

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Flange compression class

value

PN 63

label

Material sealing

value

Metal-sealing

label

Max. operating pressure at 20 °C

value

69bar

label

Max. operating pressure at 20 °C (imperial)

value

1000.76psi

label

Medium temperature (continuous)

value

-196°C - 175°C

label

Medium temperature (continuous) (imperial)

value

-320.8°F - 347°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
