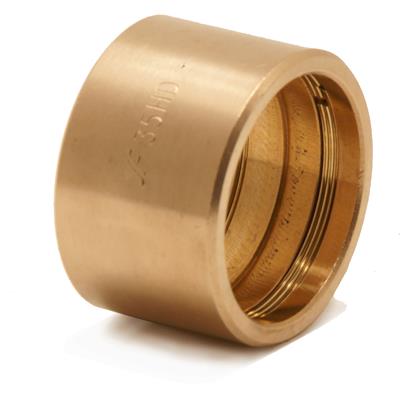

group: 1GHD
potable water
natural gas
heating
cooling
vacuum
commercial building
industry
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
8
dimensions
12x12x16 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050309631
item number
size
12
dimensions
16x16x18 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050309754
item number
size
15
dimensions
15x19x19 mm
weight
0.01 kg
packaging
bag (10 pce)
gtin
05022050309877
item number
size
22
dimensions
20x27x27 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
05022050310002
item number
size
28
dimensions
24x35x35 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050310125
item number
size
35
dimensions
27x27x42 mm
weight
0.1 kg
packaging
bag (1 pce)
gtin
05022050560094
item number
size
42
dimensions
31x50x50 mm
weight
0.16 kg
packaging
bag (1 pce)
gtin
05022050560100
item number
size
54
dimensions
40x65x65 mm
weight
0.31 kg
packaging
bag (1 pce)
gtin
05022050560117
materials
bronze (EN CC499K)
finishing
none
shape
straight (90º)
connection type
solder
sealing
Metal sealing
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
Pegler
series
Yorkshire GHD
product type
1GHD
UNSPS
31163000
max operating pressure liquid
min. medium temperature
-196 °C
max medium temperature
200 °C
peak medium temperature
175 °C
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Soldered sleeve
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-196°C - 175°C
label
Medium temperature (continuous) (imperial)
value
-320.8°F - 347°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
