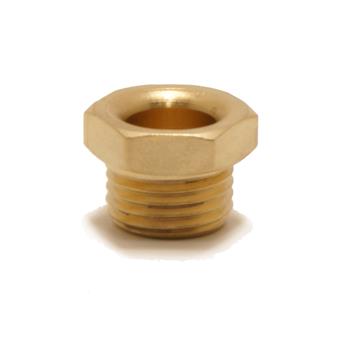

Yorkshire compression nut

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

83002

size

8

dimensions

13x13x14 mm

weight

0.01 kg

packaging

unpackaged (1 pce)

gtin

05022050830029

item number

83003

size

10

dimensions

12x12x20 mm

weight

0.01 kg

packaging

unpackaged (1 pce)

gtin

05022050830036

item number

size

item number

83002

size

8

item number

83003

size

10

technical drawing for product

characteristics

color

brass

materials

brass (CW603N)

finishing

none

shape

round

sealing

Metal sealing

general

product group

fittings (accessories (fittings))

ETIM class

EC010592 Coupling nut

HS code

74122000

brand

Pegler

series

Yorkshire Heating

product type

1478A

technical

min. medium temperature

30 °C

max medium temperature

110 °C

peak medium temperature

110 °C

image for 1478A

image | jpg

1478A

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Material

value

Brass

item number

carbon footprint (A-C) embodied carbon

data source

item number

83002

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

item number

83003

carbon footprint (A-C) embodied carbon

0.04kgCO2e

data source

TM65
