item: 272051

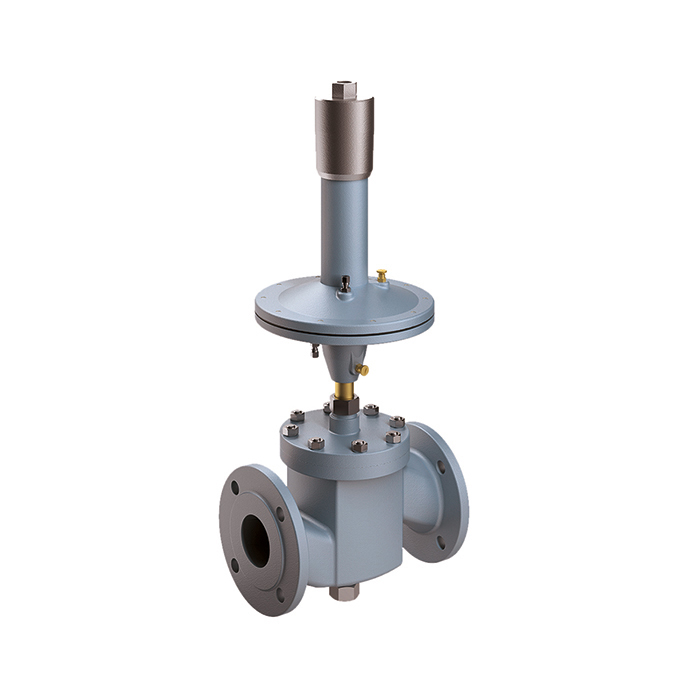

The type 930, Pegler Proflow Differential Pressure Controller with flanged connections is for use in heating and cooling equipment in a GVAC application, it ensures a constant differential pressure control across motorised and static balancing valves to achieve the desired flow distribution in a system and eliminates noise nuisance cause by a high differential pressure across radiator thermostats, two-way control valves and other system components. This valve is available in DN65 and DN80
heating
cooling
commercial building
industry
no approvals available
color
blue
materials
cast iron (GGG40 (EN-GJS-400-15))
finishing
powder
shape
straight (0º)
connection type
flange
pressure rating (PN)
PN 16
sealing
EPDM
product group
valves (pressure reducing valves)
ETIM class
EC011463 Regulating valve
brand
Pegler
series
ProFlow DP
product type
930
UNSPS
41112411
item
Pegler ProFlow delta controller (70-130 kPa) FF G3" (DN80)
item number with gtin
272051 (05708537534085)
product number with gtin
272051 (05708537534085)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
930 - Pegler ProFlow Delta DP Control Valve
size
DN80
weight
38 kg
dimensions
310x179x279
max operating pressure liquid
16 bar
min. medium temperature
-20 °C
max medium temperature
120 °C
peak medium temperature
120 °C
Kv-value
2.4804 - 91.08
label
value
label
ETIM class
label
Housing material
value
Cast iron
label
Material quality
value
Cast iron EN-GJS-400-15 (GGG 40)
label
Surface protection
value
Coated
label
Nominal diameter
value
DN 80
label
Connection 1
value
Flange
label
With coupling connection 1
value
Yes
label
Connection 2
value
Flange
label
With coupling connection 2
value
Yes
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Suitable for tap water
value
No
label
Suitable for hot tap water
value
No
label
Suitable for central heating water
value
Yes
label
Max. operating pressure
value
16bar
label
Max. operating pressure (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-20°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 248°F
label
Suitable for manual operation
value
No
label
Thermostatic
value
No
label
With drain valve
value
No
label
With thermometer
value
No
label
With position indicator
value
No
label
Kv value
value
2.4804 - 91.08
label
With insulation
value
No
