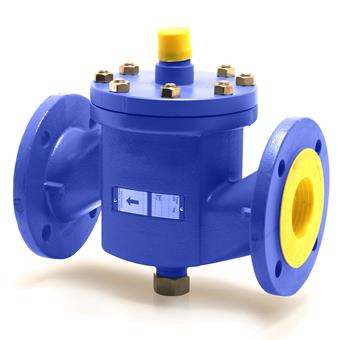

Pegler ProFlow Delta DP Control Valve

group: 930

The type 930, Pegler Proflow Differential Pressure Controller with flanged connections is for use in heating and cooling equipment in a GVAC application, it ensures a constant differential pressure control across motorised and static balancing valves to achieve the desired flow distribution in a system and eliminates noise nuisance cause by a high differential pressure across radiator thermostats, two-way control valves and other system components. This valve is available in DN65 and DN80
  • Wide setting range for different applications:
  • Ensures correct balance regardless of pressure fluctuations in the system
  • Eliminates noise problems
  • Robust construction, pressure class PN25
  • Easy commissioning saves time and money
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    272050

    size

    DN65

    dimensions

    290x192x264

    weight

    23 kg

    packaging

    -

    gtin

    05708537534078

    item number

    272051

    size

    DN80

    dimensions

    310x179x279

    weight

    38 kg

    packaging

    -

    gtin

    05708537534085

    characteristics

    color

    blue

    materials

    cast iron (GGG40 (EN-GJS-400-15))

    finishing

    powder

    shape

    straight (0º)

    connection type

    flange

    pressure rating (PN)

    PN 16

    sealing

    EPDM

    general

    product group

    valves (pressure reducing valves)

    ETIM class

    EC011463 Regulating valve

    brand

    Pegler

    series

    ProFlow DP

    product type

    930

    UNSPS

    41112411

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -20 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    Kv-value

    value depends on the item view items

    image for 930

    image | jpg

    930

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Cast iron

    label

    Material quality

    value

    Cast iron EN-GJS-400-15 (GGG 40)

    label

    Surface protection

    value

    Coated

    label

    Connection 1

    value

    Flange

    label

    With coupling connection 1

    value

    Yes

    label

    Connection 2

    value

    Flange

    label

    With coupling connection 2

    value

    Yes

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    Suitable for tap water

    value

    No

    label

    Suitable for hot tap water

    value

    No

    label

    Suitable for central heating water

    value

    Yes

    label

    Max. operating pressure

    value

    16bar

    label

    Max. operating pressure (imperial)

    value

    232.06psi

    label

    Medium temperature (continuous)

    value

    -20°C - 120°C

    label

    Medium temperature (continuous) (imperial)

    value

    -4°F - 248°F

    label

    Suitable for manual operation

    value

    No

    label

    Thermostatic

    value

    No

    label

    With drain valve

    value

    No

    label

    With thermometer

    value

    No

    label

    With position indicator

    value

    No

    label

    With insulation

    value

    No
