item: 177225529E03
heating
cooling
compressed air
sprinkler
dry fire main
industry
fire protection
commercial building
QB (CSTBat)
VdS
CNBOP
CRN
label
value
label
d1
value
76.1
label
DN1
value
DN65
label
l1
value
127
label
z1
value
127
item

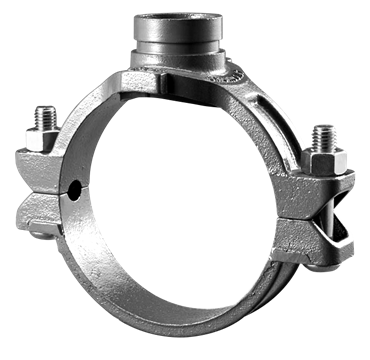

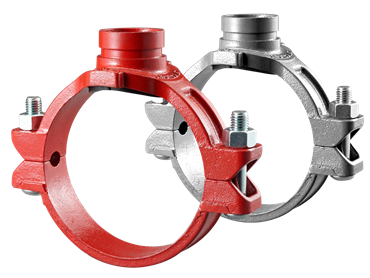

VSH Shurjoint mechanical tee MM 139.7/141.3x76.1 galvanized ISO
item number with gtin
177225529E03 (04710574636913)
product number with gtin
177225529E03 (08711985478129)
manufacturer
Shurjoint
size
139.7/141.3x76.1 galvanized ISO
weight
4.25 kg
dimensions
118x236x213 mm
color
silver
materials
cast iron (ASTM A536 65-45-12)
finishing
hot dip galvanized
shape
Tapping saddle
connection type
groove (fitting), hole
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
-34 °C
max medium temperature
110 °C
product group
fittings (EPDM)
ETIM class
EC011014 Broaching saddlebrand
VSH
series
Shurjoint
product type
7722E
UNSPS
40175303
label
value
label
etim-class
label
Material
value
Cast iron
label
Material inlay
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Surface protection
value
Galvanised (expired)
label
Suitable for pipe diameter
value
DN 125
label
High tensile strength
value
Yes
label
Nominal diameter
value
DN 65
label
Outer pipe diameter
value
76.1mm
label
Outer pipe diameter (imperial)
value
3"
label
Connection
value
Groove
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
Medium temperature (continuous)
value
-34°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-29.2°F - 230°F
label
Width
value
118mm
label
Width (imperial)
value
4.65"
label
Length of connection 1
value
127mm
label
Length of connection 1 (imperial)
value
5"
label
Working length connection 1
value
127mm
label
Working length connection 1 (imperial)
value
5"
label
Colour
value
Grey
label
VdS quality mark
value
Yes
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
