VSH Shurjoint mechanical tee (1 x groove), EPDM gasket

group: 7722

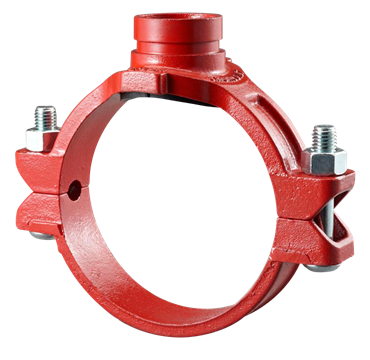

7722E is the designation for model 7722 with a Grade E EPDM gasket. The VSH Shurjoint Model 7722 Mechanical Tee when mounted on the hole cut pipe provides a fast and easy mid-pipe grooved-end branch outlet. By utilizing the Model 7722 you eliminate the need for welding or the use of multiple fittings. The mechanical Tee is comprised of upper and lower ductile iron housing segments, a grade “E” EPDM rubber molded gasket and plated track bolts and nuts. Mechanical tees are supplied with our standard painted finishes, i.e. orange or red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coating are also available.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CNBOP

CNBOP

CRN

CRN

FM

FM

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item number

size

d1

DN1

l1

z1

item number

177222012E02

size

60.3x42.4 red ISO

d1

42.4

DN1

DN32

l1

71

z1

71

item number

177222012E03

size

60.3x42.4 galvanized ISO

d1

42.4

DN1

DN32

l1

71

z1

71

item number

177222015E02

size

60.3x48.3 red ISO

d1

48.3

DN1

DN40

l1

71

z1

71

item number

177222015E03

size

60.3x48.3 galvanized ISO

d1

48.3

DN1

DN40

l1

71

z1

71

item number

177222512E02

size

73/76.1x42.4 red ISO

d1

42.4

DN1

DN32

l1

79

z1

79

item number

177222512E03

size

73/76.1x42.4 galvanized ISO

d1

42.4

DN1

DN32

l1

79

z1

79

item number

177222515E02

size

73/76.1x48.3 red ISO

d1

48.3

DN1

DN40

l1

79

z1

79

item number

177222515E03

size

73/76.1x48.3 galvanized ISO

d1

48.3

DN1

DN40

l1

79

z1

79

item number

177223012E02

size

88.9x42.4 red ISO

d1

42.4

DN1

DN32

l1

89

z1

89

item number

177223012E03

size

88.9x42.4 galvanized ISO

d1

42.4

DN1

DN32

l1

89

z1

89

item number

177223015E02

size

88.9x48.3 red ISO

d1

48.3

DN1

DN40

l1

89

z1

89

item number

177223015E03

size

88.9x48.3 galvanized ISO

d1

48.3

DN1

DN40

l1

89

z1

89

item number

177223020E02

size

88.9x60.3 red ISO

d1

60.3

DN1

DN50

l1

91

z1

91

item number

177223020E03

size

88.9x60.3 galvanized ISO

d1

60.3

DN1

DN50

l1

91

z1

91

item number

177224512E02

size

114.3x42.4 red ISO

d1

42.4

DN1

DN32

l1

99

z1

99

item number

177224512E03

size

114.3x42.4 galvanized ISO

d1

42.4

DN1

DN32

l1

99

z1

99

item number

177224515E02

size

114.3x48.3 red ISO

d1

48.3

DN1

DN40

l1

99

z1

99

item number

177224515E03

size

114.3x48.3 galvanized ISO

d1

48.3

DN1

DN40

l1

99

z1

99

item number

177224520E02

size

114.3x60.3 red ISO

d1

60.3

DN1

DN50

l1

105

z1

105

item number

177224520E03

size

114.3x60.3 galvanized ISO

d1

60.3

DN1

DN50

l1

105

z1

105

item number

177224529E02

size

114.3x76.1 red ISO

d1

76.1

DN1

DN65

l1

111

z1

111

item number

177224529E03

size

114.3x76.1 galvanized ISO

d1

76.1

DN1

DN65

l1

111

z1

111

item number

177224530E02

size

114.3x88.9 red ISO

d1

88.9

DN1

DN80

l1

112

z1

112

item number

177224530E03

size

114.3x88.9 galvanized ISO

d1

88.9

DN1

DN80

l1

112

z1

112

item number

177225520E02

size

139.7/141.3x60.3 red ISO

d1

60.3

DN1

DN50

l1

124

z1

124

item number

177225520E03

size

139.7/141.3x60.3 galvanized ISO

d1

60.3

DN1

DN50

l1

124

z1

124

item number

177225529E02

size

139.7/141.3x76.1 red ISO

d1

76.1

DN1

DN65

l1

127

z1

127

item number

177225529E03

size

139.7/141.3x76.1 galvanized ISO

d1

76.1

DN1

DN65

l1

127

z1

127

item number

177226512E02

size

165.1/168.3x42.4 red ISO

d1

42.4

DN1

DN32

l1

127

z1

127

item number

177226512E03

size

165.1/168.3x42.4 galvanized ISO

d1

42.4

DN1

DN32

l1

127

z1

127

item number

177226515E02

size

165.1/168.3x48.3 red ISO

d1

48.3

DN1

DN40

l1

127

z1

127

item number

177226515E03

size

165.1/168.3x48.3 galvanized ISO

d1

48.3

DN1

DN40

l1

127

z1

127

item number

177226520E02

size

165.1/168.3x60.3 red ISO

d1

60.3

DN1

DN50

l1

132

z1

132

item number

177226520E03

size

165.1/168.3x60.3 galvanized ISO

d1

60.3

DN1

DN50

l1

132

z1

132

item number

177226529E02

size

165.1/168.3x76.1 red ISO

d1

76.1

DN1

DN65

l1

140

z1

140

item number

177226529E03

size

165.1/168.3x76.1 galvanized ISO

d1

76.1

DN1

DN65

l1

140

z1

140

item number

177226530E02

size

165.1/168.3x88.9 red ISO

d1

88.9

DN1

DN80

l1

140

z1

140

item number

177226530E03

size

165.1/168.3x88.9 galvanized ISO

d1

88.9

DN1

DN80

l1

140

z1

140

item number

177226545E02

size

165.1/168.3x114.3 red ISO

d1

114.3

DN1

DN100

l1

140

z1

140

item number

177226545E03

size

165.1/168.3x114.3 galvanized ISO

d1

114.3

DN1

DN100

l1

140

z1

140

item number

177228520E02

size

219.1x60.3 red ISO

d1

60.3

DN1

DN50

l1

166

z1

166

item number

177228520E03

size

219.1x60.3 galvanized ISO

d1

60.3

DN1

DN50

l1

166

z1

166

item number

177228529E02

size

219.1x76.1 red ISO

d1

76.1

DN1

DN65

l1

166

z1

166

item number

177228529E03

size

219.1x76.1 galvanized ISO

d1

76.1

DN1

DN65

l1

166

z1

166

item number

177228530E02

size

219.1x88.9 red ISO

d1

88.9

DN1

DN80

l1

166

z1

166

item number

177228530E03

size

219.1x88.9 galvanized ISO

d1

88.9

DN1

DN80

l1

166

z1

166

item number

177228545E02

size

219.1x114.3 red ISO

d1

114.3

DN1

DN100

l1

166

z1

166

item number

177228545E03

size

219.1x114.3 galvanized ISO

d1

114.3

DN1

DN100

l1

166

z1

166

technical drawing for product

characteristics

color

silver, red

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

Tapping saddle

connection type

groove (fitting), hole

sealing

EPDM

general

product group

fittings (demountable)

ETIM class

EC011014 Broaching saddle

brand

VSH

series

Shurjoint

product type

7722E

UNSPS

40175303

label

value

label

ETIM class

label

Material

value

Cast iron

label

Material inlay

value

Ethylene-propylene diene monomer rubber (EPDM)

label

High tensile strength

value

Yes

label

Connection

value

Groove

label

Max. operating pressure at 20 °C

value

20bar

label

Max. operating pressure at 20 °C (imperial)

value

290.08psi

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
