item: 15427

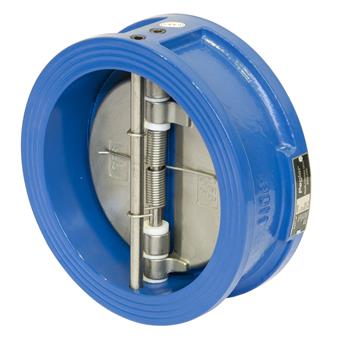

Wafer dual plate check valve
potable water
heating
cooling
non-potable water
commercial building
industry
no approvals available
label
value
label
d1
value
355.6
label
DN1
value
DN350
label
l1
value
127
label
d2
value
355.6
label
DN2
value
DN350
label
n2
value
16
label
k2
value
470
label
b2
value
25
label
d2-2
value
26
label
D2
value
520
label
E
value
184
label
H
value
221
label
D1
value
444
label
a
value
90
color
blue
materials
cast iron (ASTM A536 65-45-12)
finishing
primer/paint
shape
straight (0º)
connection type
wafer type
pressure rating (PN)
PN 16
sealing
EPDM
product group
valves (check valves)
ETIM class
EC010596 Wafer type check valve
HS code
84813091
brand
Pegler
series
Check Valve
product type
V909
UNSPS
40141637
item
Pegler check valve wafer DN350 PN16
item number with gtin
15427 (05022050353764)
product number with gtin
15427 (05022050571441)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
V909 - Pegler Check valve wafer (2 x flange)
size
DN350
weight
55 kg
dimensions
447x127x447 mm
packaging
unpackaged (1 pce)
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
120 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Housing material
value
Cast iron
label
Surface protection
value
Primer
label
Nominal diameter
value
DN 350
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-10°C - 120°C
label
Medium temperature (continuous) (imperial)
value
14°F - 248°F
label
Sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Length
value
447mm
label
Length (imperial)
value
17.6"
carbon footprint (A-C) embodied carbon
207.2kgCO2e
data source
TM65
