group: V909

The Pegler type V909 are Ductile Iron wafer pattern check valves which are intended prevent back flow in sections of pipe work and equipment an provide a long trouble-free service its dual plate Spring loaded mechanism enables it to be used both in vertical and horizontal positions. They are used for high velocity liquid services to prevent a change to the direction of flow caused by back flow and are available in sizes DN65 to DN450.

Wafer dual plate check valve
16bar from -10°C to 110°C.
Stainless Steel Disc
BS EN 16767:2020
face to face dimensions comply to BS EN 558-1

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

non-potable water

heating

cooling

show all

show less

industry

commercial building

datacenters

show all

show less

WRAS

show all

show less

code

size

dimensions

weight

packaging

gtin

code

size

PN16 DN50

dimensions

103x43x103 mm

weight

2 kg

packaging

unpackaged (1 pce)

gtin

05022050743473

code

size

PN16 DN65

dimensions

123x46x123 mm

weight

2.5 kg

packaging

bag (1 pce)

gtin

05022050084583

code

size

PN16 DN80

dimensions

142x64x142 mm

weight

4 kg

packaging

bag (1 pce)

gtin

05022050086020

code

size

PN16 DN100

dimensions

157x64x157 mm

weight

5 kg

packaging

bag (1 pce)

gtin

05022050120946

code

size

PN16 DN125

dimensions

192x70x192 mm

weight

8 kg

packaging

bag (1 pce)

gtin

05022050087294

code

size

PN16 DN150

dimensions

218x76x218 mm

weight

10 kg

packaging

box (1 pce)

gtin

05022050088086

code

size

PN16 DN200

dimensions

268x89x268 mm

weight

20 kg

packaging

unpackaged (1 pce)

gtin

05022050088994

code

size

PN16 DN250

dimensions

328x114x328 mm

weight

30 kg

packaging

unpackaged (1 pce)

gtin

05022050089076

code

size

PN16 DN300

dimensions

380x114x380 mm

weight

50 kg

packaging

unpackaged (1 pce)

gtin

05022050089267

code

size

PN16 DN350

dimensions

444x127x444 mm

weight

60 kg

packaging

unpackaged (1 pce)

gtin

05022050743497

code

size

PN16 DN400

dimensions

495x140x495 mm

weight

65 kg

packaging

unpackaged (1 pce)

gtin

05022050743510

code

size

PN16 DN450

dimensions

554x152x554 mm

weight

85 kg

packaging

unpackaged (1 pce)

gtin

05022050743534

code

size

PN16 DN500

dimensions

616x152x616 mm

weight

125 kg

packaging

unpackaged (1 pce)

gtin

05022050743558

code

size

PN16 DN600

dimensions

724x156x724 mm

weight

200 kg

packaging

unpackaged (1 pce)

gtin

05022050743572

code

size

PN16 DN350

dimensions

447x127x447 mm

weight

55 kg

packaging

unpackaged (1 pce)

gtin

05022050353764

code

size

PN16 DN450

dimensions

554x140x554 mm

weight

107 kg

packaging

-

gtin

05022050469557

code

size

PN25 DN300

dimensions

399x349x399 mm

weight

41 kg

packaging

-

gtin

05022050469564

code

size

PN25 DN50

dimensions

103x43x103 mm

weight

2 kg

packaging

unpackaged (1 pce)

gtin

05022050743596

code

size

PN25 DN65

dimensions

123x46x123 mm

weight

2.5 kg

packaging

unpackaged (1 pce)

gtin

05022050743619

code

size

PN25 DN80

dimensions

142x64x142 mm

weight

4 kg

packaging

unpackaged (1 pce)

gtin

05022050743633

code

size

PN25 DN100

dimensions

157x64x157 mm

weight

5 kg

packaging

unpackaged (1 pce)

gtin

05022050743657

code

size

PN25 DN125

dimensions

192x70x192 mm

weight

8 kg

packaging

unpackaged (1 pce)

gtin

05022050743671

code

size

PN25 DN150

dimensions

218x76x218 mm

weight

10 kg

packaging

unpackaged (1 pce)

gtin

05022050743763

code

size

PN25 DN200

dimensions

268x89x268 mm

weight

20 kg

packaging

unpackaged (1 pce)

gtin

05022050743787

code

size

PN25 DN250

dimensions

328x114x328 mm

weight

30 kg

packaging

unpackaged (1 pce)

gtin

05022050743800

code

size

PN25 DN300

dimensions

380x114x380 mm

weight

50 kg

packaging

unpackaged (1 pce)

gtin

05022050743824

code

size

PN25 DN350

dimensions

444x127x444 mm

weight

60 kg

packaging

unpackaged (1 pce)

gtin

05022050743848

code

size

PN25 DN400

dimensions

495x140x495 mm

weight

65 kg

packaging

unpackaged (1 pce)

gtin

05022050743886

code

size

PN25 DN450

dimensions

554x152x554 mm

weight

85 kg

packaging

unpackaged (1 pce)

gtin

-

code

size

PN25 DN500

dimensions

616x152x616 mm

weight

125 kg

packaging

unpackaged (1 pce)

gtin

05022050743909

code

size

PN25 DN600

dimensions

724x156x724 mm

weight

200 kg

packaging

unpackaged (1 pce)

gtin

05022050743923

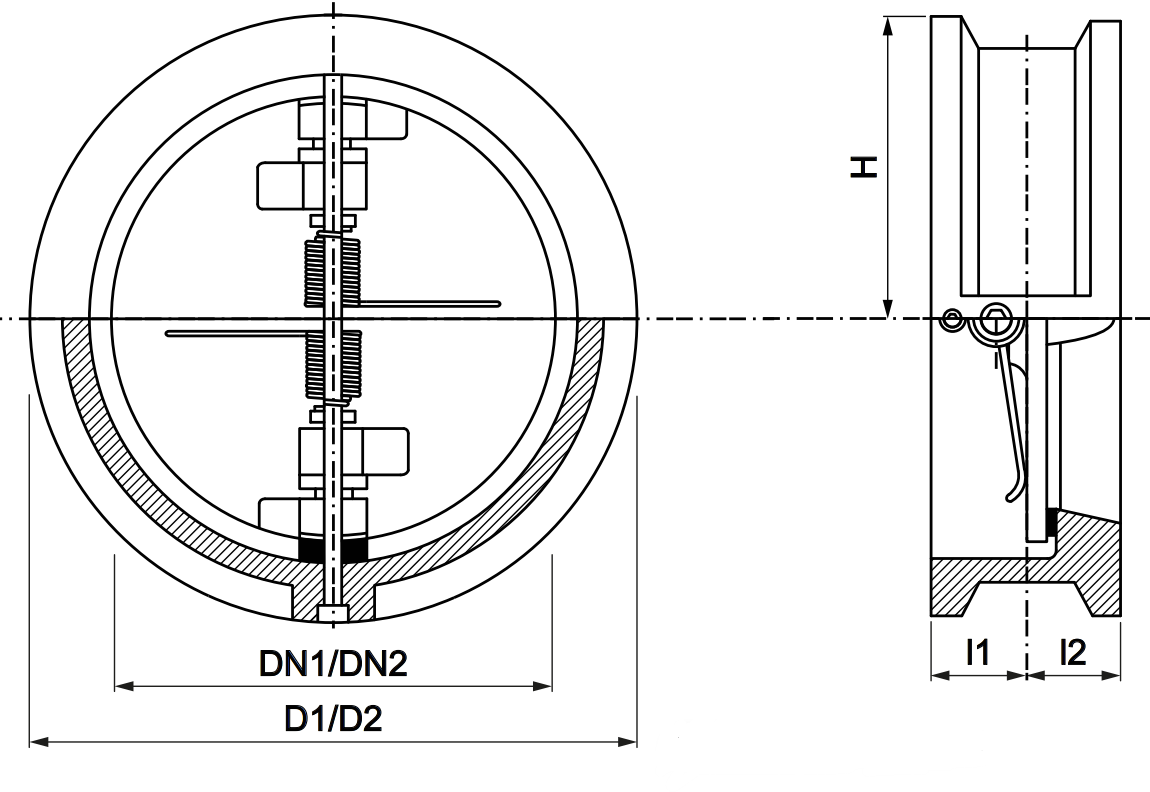

code

size

d1

DN1

l1

z1

d2

DN2

l2

z2

n2

k2

b2

d2-2

D2

E

H

D1

a

code

size

PN16 DN50

d1

60.3

DN1

DN50

l1

22

z1

22

d2

60.3

DN2

DN50

l2

22

z2

22

n2

4

k2

125

b2

9

d2-2

18

D2

165

E

46

H

52

D1

103

a

90

code

size

PN16 DN65

d1

76.1

DN1

DN65

l1

23

z1

23

d2

76.1

DN2

DN65

l2

23

z2

23

n2

4

k2

145

b2

9

d2-2

18

D2

185

E

-

H

62

D1

123

a

90

code

size

PN16 DN80

d1

88.9

DN1

DN80

l1

32

z1

32

d2

88.9

DN2

DN80

l2

32

z2

32

n2

8

k2

160

b2

11

d2-2

18

D2

200

E

-

H

71

D1

142

a

90

code

size

PN16 DN100

d1

114.3

DN1

DN100

l1

32

z1

32

d2

114.3

DN2

DN100

l2

32

z2

32

n2

8

k2

180

b2

13

d2-2

18

D2

220

E

-

H

79

D1

157

a

90

code

size

PN16 DN125

d1

139.7

DN1

DN125

l1

35

z1

35

d2

139.7

DN2

DN125

l2

35

z2

35

n2

8

k2

210

b2

14

d2-2

18

D2

250

E

-

H

96

D1

192

a

90

code

size

PN16 DN150

d1

168.3

DN1

DN150

l1

38

z1

38

d2

168.3

DN2

DN150

l2

38

z2

38

n2

8

k2

240

b2

15

d2-2

22

D2

285

E

-

H

109

D1

218

a

90

code

size

PN16 DN200

d1

219.1

DN1

DN200

l1

45

z1

45

d2

219.1

DN2

DN200

l2

45

z2

45

n2

12

k2

295

b2

18

d2-2

22

D2

340

E

-

H

134

D1

268

a

90

code

size

PN16 DN250

d1

273.1

DN1

DN250

l1

57

z1

57

d2

273.1

DN2

DN250

l2

57

z2

57

n2

12

k2

355

b2

23

d2-2

26

D2

405

E

-

H

164

D1

328

a

90

code

size

PN16 DN300

d1

323.9

DN1

DN300

l1

57

z1

57

d2

323.9

DN2

DN300

l2

57

z2

57

n2

12

k2

410

b2

23

d2-2

26

D2

460

E

-

H

190

D1

380

a

90

code

size

PN16 DN350

d1

355.6

DN1

DN350

l1

64

z1

64

d2

355.6

DN2

DN350

l2

64

z2

64

n2

16

k2

470

b2

9

d2-2

26

D2

520

E

46

H

222

D1

444

a

90

code

size

PN16 DN400

d1

406.4

DN1

DN400

l1

70

z1

70

d2

406.4

DN2

DN400

l2

70

z2

70

n2

16

k2

525

b2

9

d2-2

30

D2

580

E

46

H

248

D1

495

a

90

code

size

PN16 DN450

d1

457.2

DN1

DN450

l1

76

z1

76

d2

457.2

DN2

DN450

l2

76

z2

76

n2

20

k2

585

b2

9

d2-2

30

D2

640

E

46

H

277

D1

554

a

90

code

size

PN16 DN500

d1

508.0

DN1

DN500

l1

76

z1

76

d2

508.0

DN2

DN500

l2

76

z2

76

n2

20

k2

650

b2

9

d2-2

33

D2

715

E

46

H

308

D1

616

a

90

code

size

PN16 DN600

d1

609.6

DN1

DN600

l1

78

z1

78

d2

609.6

DN2

DN600

l2

78

z2

78

n2

20

k2

770

b2

9

d2-2

36

D2

840

E

46

H

362

D1

724

a

90

code

size

PN16 DN350

d1

355.6

DN1

DN350

l1

127

z1

-

d2

355.6

DN2

DN350

l2

-

z2

-

n2

16

k2

470

b2

25

d2-2

26

D2

520

E

184

H

221

D1

444

a

90

code

size

PN16 DN450

d1

457.2

DN1

DN450

l1

140

z1

-

d2

457.2

DN2

DN450

l2

-

z2

-

n2

20

k2

585

b2

30

d2-2

30

D2

640

E

191

H

249

D1

495

a

90

code

size

PN25 DN300

d1

323.9

DN1

DN300

l1

349

z1

-

d2

323.9

DN2

DN300

l2

-

z2

-

n2

-

k2

-

b2

23

d2-2

-

D2

-

E

114

H

191

D1

382

a

90

code

size

PN25 DN50

d1

60.3

DN1

DN50

l1

22

z1

22

d2

60.3

DN2

DN50

l2

22

z2

22

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

46

H

52

D1

103

a

90

code

size

PN25 DN65

d1

76.1

DN1

DN65

l1

23

z1

23

d2

76.1

DN2

DN65

l2

23

z2

23

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

-

H

62

D1

123

a

90

code

size

PN25 DN80

d1

88.9

DN1

DN80

l1

32

z1

32

d2

88.9

DN2

DN80

l2

32

z2

32

n2

-

k2

-

b2

11

d2-2

-

D2

-

E

-

H

71

D1

142

a

90

code

size

PN25 DN100

d1

114.3

DN1

DN100

l1

32

z1

32

d2

114.3

DN2

DN100

l2

32

z2

32

n2

-

k2

-

b2

13

d2-2

-

D2

-

E

-

H

79

D1

157

a

90

code

size

PN25 DN125

d1

139.7

DN1

DN125

l1

35

z1

35

d2

139.7

DN2

DN125

l2

35

z2

35

n2

-

k2

-

b2

14

d2-2

-

D2

-

E

-

H

96

D1

192

a

90

code

size

PN25 DN150

d1

168.3

DN1

DN150

l1

38

z1

38

d2

168.3

DN2

DN150

l2

38

z2

38

n2

-

k2

-

b2

15

d2-2

-

D2

-

E

-

H

109

D1

218

a

90

code

size

PN25 DN200

d1

219.1

DN1

DN200

l1

45

z1

45

d2

219.1

DN2

DN200

l2

45

z2

45

n2

-

k2

-

b2

18

d2-2

-

D2

-

E

-

H

134

D1

268

a

90

code

size

PN25 DN250

d1

273.1

DN1

DN250

l1

57

z1

57

d2

273.1

DN2

DN250

l2

57

z2

57

n2

-

k2

-

b2

23

d2-2

-

D2

-

E

-

H

164

D1

328

a

90

code

size

PN25 DN300

d1

323.9

DN1

DN300

l1

57

z1

57

d2

323.9

DN2

DN300

l2

57

z2

57

n2

-

k2

-

b2

23

d2-2

-

D2

-

E

-

H

190

D1

380

a

90

code

size

PN25 DN350

d1

355.6

DN1

DN350

l1

64

z1

64

d2

355.6

DN2

DN350

l2

64

z2

64

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

46

H

222

D1

444

a

90

code

size

PN25 DN400

d1

406.4

DN1

DN400

l1

70

z1

70

d2

406.4

DN2

DN400

l2

70

z2

70

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

46

H

248

D1

495

a

90

code

size

PN25 DN450

d1

457.2

DN1

DN450

l1

76

z1

76

d2

457.2

DN2

DN450

l2

76

z2

76

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

46

H

277

D1

554

a

90

code

size

PN25 DN500

d1

508.0

DN1

DN500

l1

76

z1

76

d2

508.0

DN2

DN500

l2

76

z2

76

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

46

H

308

D1

616

a

90

code

size

PN25 DN600

d1

609.6

DN1

DN600

l1

78

z1

78

d2

609.6

DN2

DN600

l2

78

z2

78

n2

-

k2

-

b2

9

d2-2

-

D2

-

E

46

H

362

D1

724

a

90

product info

item

Pegler Check valve wafer (2 x flange)

item number with gtin

V909

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

200 kg

dimensions

724x156x724 mm

characteristics

color

blue

materials

cast iron (Cast iron EN-GJS-450-10)

finishing

primer/paint

shape

straight

connection type

wafer type

sealing

PTFE, EPDM

general

product group

valves (check valves)

ETIM class

EC010596 Wafer type check valve

brand

Pegler

series

Check Valve

product type

V909

UNSPS

40141637

image for V909

image | jpg

V909

image for Diagram

diagram | png

Diagram

Other document | pdf

V909 PN16 datasheet

Other document | pdf

V909 PN25 datasheet

certifications | pdf

TM65 Embodied Carbon Declaration

certifications | pdf

WRAS Dual Plate Non Return Valves - V909

label

value

label

etim-class

value

EC010596 Wafer type check valve

label

Housing material

value

Cast iron

label

Surface protection

value

Primer

code

carbon footprint (A-C) embodied carbon

data source

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

16.36kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

15.37kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

27.84kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

32.29kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

60.43kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

89.51kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

154.55kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

207.2kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

395.19kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

154.48kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

16.36kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

15.37kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

27.84kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

32.29kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

60.43kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

89.51kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

154.55kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

10.44kgCO2e

data source

TM65

Got any questions?

we are here to help
