item: 10-51902
potable water
natural gas
heating
cooling
compressed air
vacuum
industry
commercial building
residential
no approvals available
label
value
label
DN1
value
3/8" (DN10)
label
z3
value
25
item

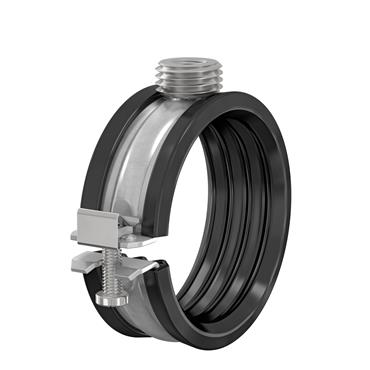

FastFix BSA clip G1/2-M10 x 17-19
item number with gtin
10-51902 (08719313020651)
product number with gtin
10-51902 (08712874519022)
manufacturer
Aalberts integrated piping systems B.V. (VSH)
predecessor
39222 (08712874392229)item group
BSA-10-1/2 BSA-10-1/2 - BSA G1/2-M10 clipsize
G1/2-M10 x 17-19
weight
0.07 kg
dimensions
50x44x20 mm
packaging
bag (10 pce)
color
silver
materials
steel
finishing
galvanized (electrolytically zincplated)
shape
round
sealing
EPDM
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
Fastening (EPDM)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
product type
BSA-10-1/2
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Nominal diameter
value
3/8 inch (10)
label
Outer pipe diameter
value
17mm - 19mm
label
Inlay
value
Rubber
label
Inlay damping value
value
19dB(A)
label
Permitted work load
value
1300N
label
Connection facility
value
Internal thread/external thread
label
Connection size, connection facility
value
1/2 inch - M10
label
Lock facility
value
Single click
label
Suitable for number of pipes
value
1
label
Width
value
50mm
label
Width (imperial)
value
1.97"
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
Depth
value
50mm
label
Depth (imperial)
value
1.97"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
