group: BSA-10-1/2
potable water
natural gas
heating
cooling
compressed air
vacuum
industry
commercial building
residential
no approvals available
code
size

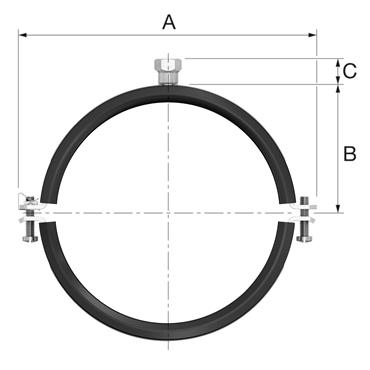

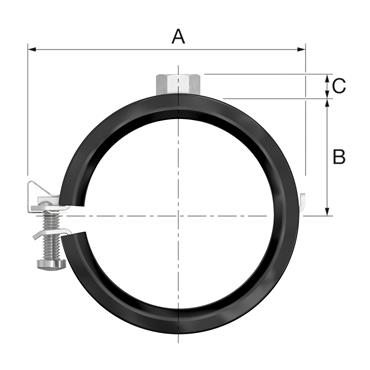

dimensions
weight
packaging
gtin
code
size
G1/2-M10 x 12-13.5
dimensions
45x38x20 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
08719313020613
code
size
G1/2-M10 x 14-16
dimensions
47x40x20 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
08719313020637
code
size
G1/2-M10 x 17-19
dimensions
50x44x20 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08719313020651
code
size
G1/2-M10 x 20-24
dimensions
54x48x20 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08719313020675
code
size
G1/2-M10 x 25-28
dimensions
59x52x20 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08719313020699
code
size
G1/2-M10 x 29-33
dimensions
63x56x20 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08719313020712
code
size
G1/2-M10 x 33-37
dimensions
70x64x20 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08719313020736
code
size
G1/2-M10 x 38-42
dimensions
78x72x20 mm
weight
0.11 kg
packaging
bag (10 pce)
gtin
08719313020750
code
size
G1/2-M10 x 44.5-49
dimensions
83x78x20 mm
weight
0.12 kg
packaging
bag (10 pce)
gtin
08719313020774
code
size
G1/2-M10 x 50-54
dimensions
90x84x20 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
08719313020798
code
size
G1/2-M10 x 56-60
dimensions
96x90x20 mm
weight
0.14 kg
packaging
bag (10 pce)
gtin
08719313020811
code
size
G1/2-M10 x 62-64
dimensions
119x96x20 mm
weight
0.21 kg
packaging
carton (25 pce)
gtin
08719313020828
code
size
G1/2-M10 x 68-73
dimensions
126x102x20 mm
weight
0.22 kg
packaging
carton (25 pce)
gtin
08719313020835
code
size
G1/2-M10 x 75-80
dimensions
133x110x20 mm
weight
0.24 kg
packaging
carton (25 pce)
gtin
08719313020842
code
size
G1/2-M10 x 82-86
dimensions
139x116x20 mm
weight
0.27 kg
packaging
bag (5 pce)
gtin
08719313035747
code
size
G1/2-M10 x 89-91
dimensions
145x122x20 mm
weight
0.27 kg
packaging
carton (25 pce)
gtin
08719313020866
code
size
G1/2-M10 x 95-102
dimensions
157x134x20 mm
weight
0.29 kg
packaging
carton (25 pce)
gtin
08719313020873
code
size
G1/2-M10 x 108-116
dimensions
168x144x20 mm
weight
0.32 kg
packaging
carton (25 pce)
gtin
08719313020880
code
size
G1/2-M10 x 121-127
dimensions
184x152x20 mm
weight
0.36 kg
packaging
carton (25 pce)
gtin
08719313020897
code
size
G1/2-M10 x 133-141
dimensions
195x166x20 mm
weight
0.38 kg
packaging
bag (5 pce)
gtin
08719313035754
code
size
G1/2-M10 x 159-162
dimensions
220x196x20 mm
weight
0.44 kg
packaging
carton (25 pce)
gtin
08719313020910
code
size
G1/2-M10 x 165-168
dimensions
25x227x227 mm
weight
0.45 kg
packaging
carton (25 pce)
gtin
08719313034320
code
size
DN1
z3
item

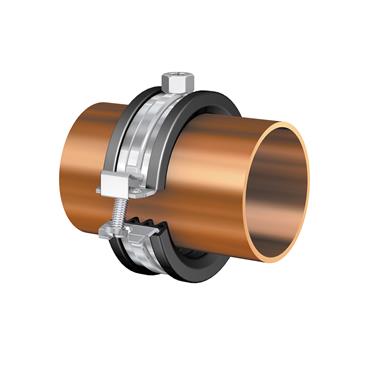

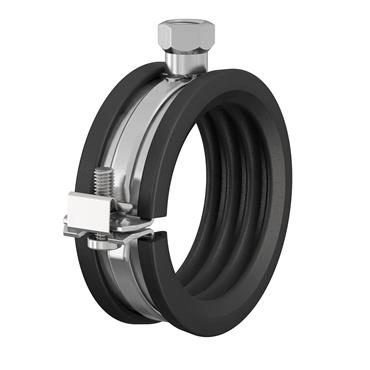

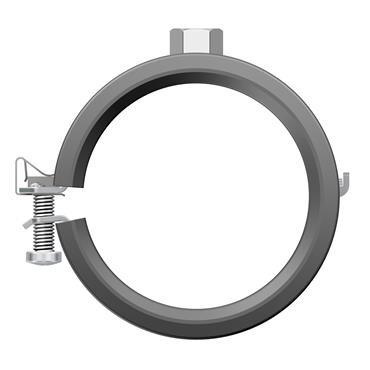

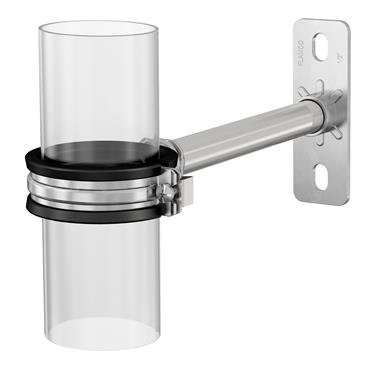

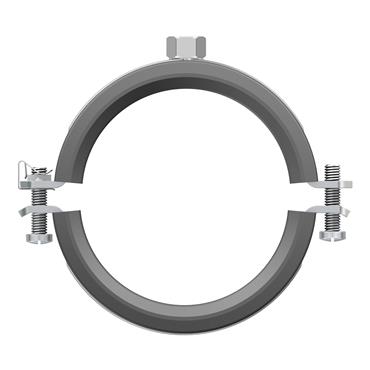

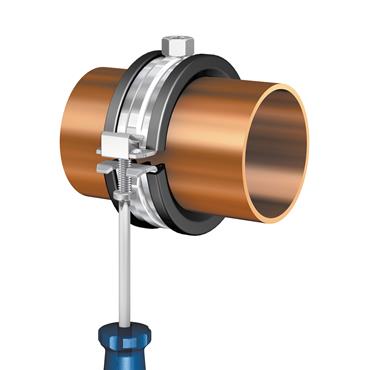

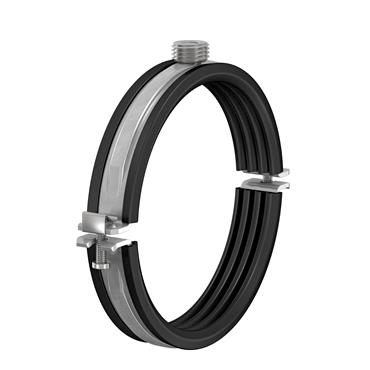

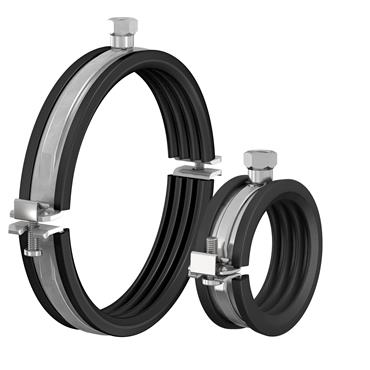

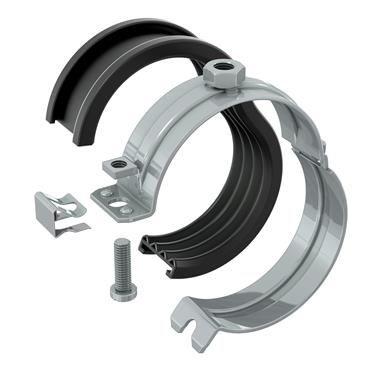

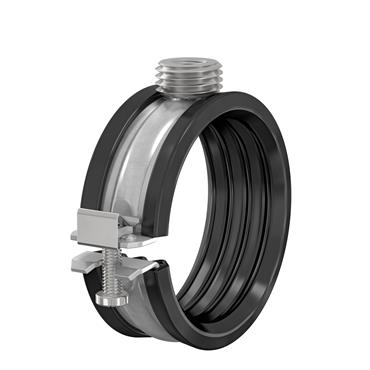

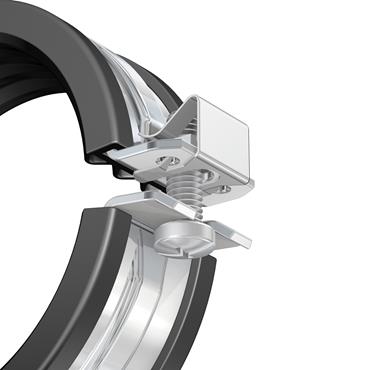

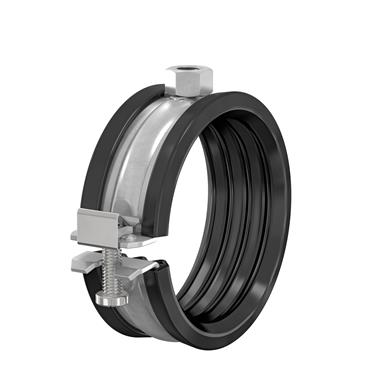

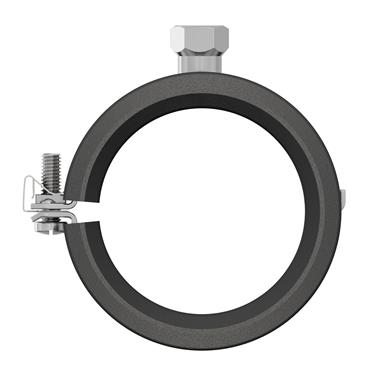

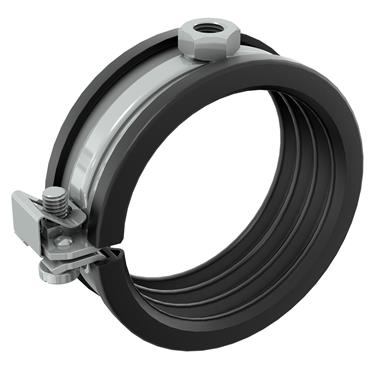

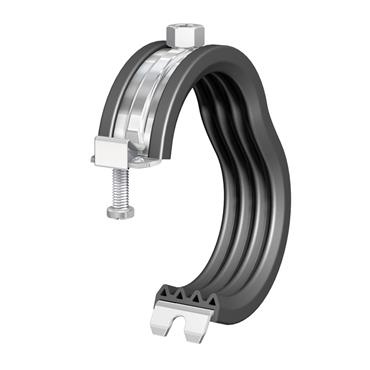

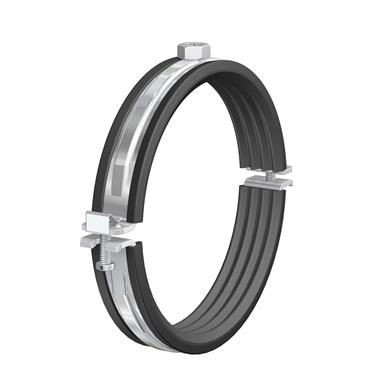

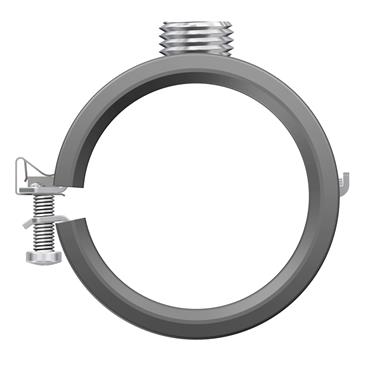

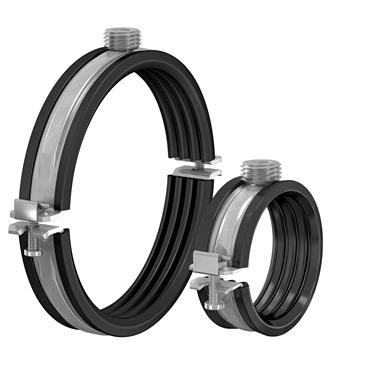

BSA G1/2-M10 clip
item number with gtin
BSA-10-1/2
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.45 kg
dimensions
25x227x227 mm
color
silver
materials
steel
finishing
galvanized (electrolytically zincplated)
shape
round
sealing
EPDM
min. medium temperature
-40 °C
max medium temperature
120 °C
product group
bevestiging (single click, snapper mounting)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
product type
BSA-10-1/2
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Inlay
value
Rubber
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-40°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 248°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
