item: 10-38672
heating
cooling
residential
commercial building
industry
RAL gütezeichen rohrbefestigung
label
value
label
DN1
value
M8/M10
item

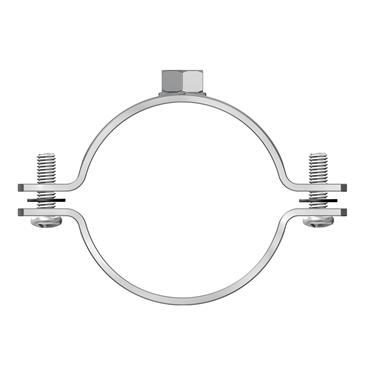

FastFix BSF clip M8-M10 x 21-25.5
item number with gtin
10-38672 (08719313014025)
product number with gtin
10-38672 (08712874386723)
manufacturer
Aalberts integrated piping systems B.V. (VSH)
predecessor
38501 (08712874385016)item group
BSF-8-10 BSF-8-10 - BSF clip M8/M10size
M8-M10 x 21-25.5
weight
0.07 kg
dimensions
53x46x20 mm
packaging
bag (10 pce)
materials
steel
finishing
galvanized (electrolytically zincplated)
min. medium temperature
-40 °C
max medium temperature
250 °C
product group
bevestiging ()
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - unlined
product type
BSF-8-10
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Outer pipe diameter
value
21mm - 25.5mm
label
Inlay damping value
value
label
Permitted work load
value
2000N
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8/M10
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
Width
value
61mm
label
Width (imperial)
value
2.4"
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
Depth
value
53mm
label
Depth (imperial)
value
2.09"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
No
label
Suitable for copper tube
value
No
label
Suitable for aluminium tube
value
No
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
No
label
Medium temperature (continuous)
value
-40°C - 250°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 482°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
carbon footprint (A-C) embodied carbon
0.34kgCO2e
data source
TM65
