group: SS21

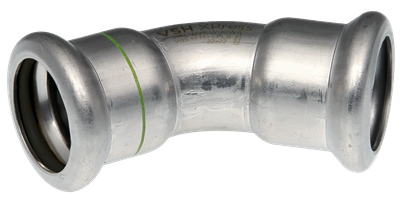

The VSH XPress SS21 is a stainless steel 45º elbow with 2 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
potable water
heating
cooling
steam
compressed air
solar energy
sprinkler
dry fire main
vacuum
fire protection
commercial building
industry
shipbuilding
ACS
ATG
Bureau Veritas
CNBOP
DVGW Wasser
FG
FM
KIWA
Lloyds Register
LPCB
ÖVGW Wasser
PZH
QB (CSTBat)
RINA
RISE
SBSC
SETSCO
SINTEF
SPF
SVGW Wasser
TA-Luft
ÜA
UK water regulation 4
VA (ETA)
VdS
Watermark
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
60x23x42 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
08711985151824
item number
size
18
dimensions
64x27x45 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
08711985151848
item number
size
22
dimensions
71x32x52 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08711985151862
item number
size
28
dimensions
82x38x60 mm
weight
0.09 kg
packaging
bag (10 pce)
gtin
08711985151886
item number
size
35
dimensions
95x45x71 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
08711985151909
item number
size
42
dimensions
115x54x86 mm
weight
0.21 kg
packaging
bag (2 pce)
gtin
08711985151923
item number
size
54
dimensions
137x65x103 mm
weight
0.3 kg
packaging
bag (2 pce)
gtin
08711985151947
item number
size
76.1
dimensions
201x94x150 mm
weight
0.79 kg
packaging
bag (2 pce)
gtin
08711985249408
item number
size
88.9
dimensions
230x109x172 mm
weight
1.11 kg
packaging
bag (2 pce)
gtin
08711985249415
item number
size
108
dimensions
282x133x211 mm
weight
1.6 kg
packaging
bag (2 pce)
gtin
08711985249422
item number
size
139.7
dimensions
430x205x165 mm
weight
3.13 kg
packaging
-
gtin
05022050465870
item number
size
168.3
dimensions
540x260x195 mm
weight
4.13 kg
packaging
-
gtin
05022050465887
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
radius
angle
item number
11604size
15
d1
15.0
DN1
DN12
l1
31
z1
11
d2
15.0
DN2
DN12
l2
31
z2
11
radius
18
angle
45
item number
11605size
18
d1
18.0
DN1
DN15
l1
32
z1
12
d2
18.0
DN2
DN15
l2
32
z2
12
radius
22
angle
45
item number
11606size
22
d1
22.0
DN1
DN20
l1
35
z1
14
d2
22.0
DN2
DN20
l2
35
z2
14
radius
27
angle
45
item number
11607size
28
d1
28.0
DN1
DN25
l1
40
z1
17
d2
28.0
DN2
DN25
l2
40
z2
17
radius
34
angle
45
item number
11608size
35
d1
35.0
DN1
DN32
l1
47
z1
21
d2
35.0
DN2
DN32
l2
47
z2
21
radius
42
angle
45
item number
11609size
42
d1
42.0
DN1
DN40
l1
56
z1
26
d2
42.0
DN2
DN40
l2
56
z2
26
radius
51
angle
45
item number
11610size
54
d1
54.0
DN1
DN50
l1
67
z1
32
d2
54.0
DN2
DN50
l2
67
z2
32
radius
65
angle
45
item number
20400size
76.1
d1
76.1
DN1
DN65
l1
98
z1
43
d2
76.1
DN2
DN65
l2
98
z2
43
radius
91
angle
45
item number
20401size
88.9
d1
88.9
DN1
DN80
l1
112
z1
49
d2
88.9
DN2
DN80
l2
112
z2
49
radius
107
angle
45
item number
20402size
108
d1
108.0
DN1
DN100
l1
138
z1
61
d2
108.0
DN2
DN100
l2
138
z2
61
radius
130
angle
45
item number
11483size
139.7
d1
139.7
DN1
DN125
l1
203
z1
105
d2
139.7
DN2
DN125
l2
203
z2
105
radius
angle
item number
11484size
168.3
d1
168.3
DN1
DN150
l1
252
z1
134
d2
168.3
DN2
DN150
l2
252
z2
134
radius
angle
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
Bend
connection type
press (M)
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
brand
VSH
series
XPress Stainless
max operating pressure liquid
16 bar
min. medium temperature
-35 °C
max medium temperature
value depends on the item view items
peak medium temperature
150 °C
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Press sleeve
label
Contour code connection 2
value
M
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
11604carbon footprint (A1-A3) cradle-to-gate
0.19kgCO2e
carbon footprint (A-C) embodied carbon
0.19kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.15kgCO2e
data source
EPD
item number
11605carbon footprint (A1-A3) cradle-to-gate
0.21kgCO2e
carbon footprint (A-C) embodied carbon
0.22kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.17kgCO2e
data source
EPD
item number
11606carbon footprint (A1-A3) cradle-to-gate
0.31kgCO2e
carbon footprint (A-C) embodied carbon
0.32kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.24kgCO2e
data source
EPD
item number
11607carbon footprint (A1-A3) cradle-to-gate
0.41kgCO2e
carbon footprint (A-C) embodied carbon
0.43kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.33kgCO2e
data source
EPD
item number
11608carbon footprint (A1-A3) cradle-to-gate
0.6kgCO2e
carbon footprint (A-C) embodied carbon
0.62kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.47kgCO2e
data source
EPD
item number
11609carbon footprint (A1-A3) cradle-to-gate
0.91kgCO2e
carbon footprint (A-C) embodied carbon
0.95kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.73kgCO2e
data source
EPD
item number
11610carbon footprint (A1-A3) cradle-to-gate
1.33kgCO2e
carbon footprint (A-C) embodied carbon
1.39kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.06kgCO2e
data source
EPD
item number
20400carbon footprint (A1-A3) cradle-to-gate
3.49kgCO2e
carbon footprint (A-C) embodied carbon
3.64kgCO2e
carbon footprint (A-D) cradle-to-cradle
2.78kgCO2e
data source
EPD
item number
20401carbon footprint (A1-A3) cradle-to-gate
4.94kgCO2e
carbon footprint (A-C) embodied carbon
5.15kgCO2e
carbon footprint (A-D) cradle-to-cradle
3.93kgCO2e
data source
EPD
item number
20402carbon footprint (A1-A3) cradle-to-gate
7.11kgCO2e
carbon footprint (A-C) embodied carbon
7.41kgCO2e
carbon footprint (A-D) cradle-to-cradle
5.66kgCO2e
data source
EPD
we are here to help
product selected products selected
You can compare up to 2 products
You can compare up to 4 products
3 downloads selected
