group: SS1FMF

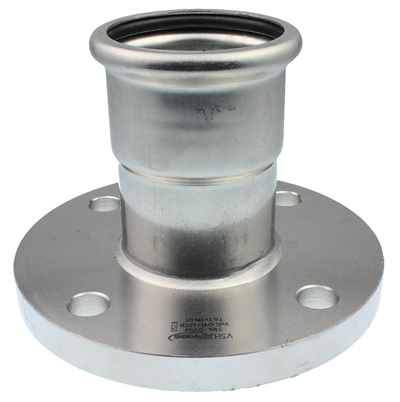

The VSH XPress SS1FMF is a stainless steel PN16 flange adapter with a press end and a DIN flange connection. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
potable water
heating
cooling
steam
compressed air
solar energy
sprinkler
dry fire main
vacuum
fire protection
commercial building
industry
shipbuilding
ACS
ATG
Bureau Veritas
CNBOP
DNV-GL
DVGW Wasser
FG
FM
KIWA
Lloyds Register
LPCB
ÖVGW Wasser
PZH
QB (CSTBat)
RINA
RISE
SBSC
SETSCO
SINTEF
SPF
SVGW Wasser
TA-Luft
ÜA
UK water regulation 4
VA (ETA)
VdS
Watermark
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
22xDN20 PN16
dimensions
59x105x105 mm
weight
0.65 kg
packaging
bag (1 pce)
gtin
08711985152425
item number
size
28xDN25 PN16
dimensions
65x115x115 mm
weight
0.88 kg
packaging
bag (1 pce)
gtin
08711985152449
item number
size
35xDN32 PN16
dimensions
69x140x140 mm
weight
1.32 kg
packaging
bag (1 pce)
gtin
08711985152463
item number
size
42xDN40 PN16
dimensions
77x150x150 mm
weight
1.59 kg
packaging
bag (1 pce)
gtin
08711985152487
item number
size
54xDN50 PN16
dimensions
87x165x165 mm
weight
1.82 kg
packaging
bag (1 pce)
gtin
08711985152500
item number
size
76.1xDN65 PN16
dimensions
126x185x185 mm
weight
3.57 kg
packaging
bag (1 pce)
gtin
08711985249705
item number
size
88.9xDN80 PN16
dimensions
147x200x200 mm
weight
4.37 kg
packaging
bag (1 pce)
gtin
08711985249712
item number
size
108xDN100 PN16
dimensions
167x220x220 mm
weight
5.28 kg
packaging
bag (1 pce)
gtin
08711985249729
item number
size
PN16 139.7 DN125
dimensions
255x255x140 mm
weight
3 kg
packaging
-
gtin
05022050465764
item number
size
PN16 168.3 DN150
dimensions
290x290x170 mm
weight
3.81 kg
packaging
-
gtin
05022050465771
item number
size
d1
DN1
l1
z1
DN2
l2
n2
k2
b2
d2-2
D2
d2
item number
11570size
22xDN20 PN16
d1
22.0
DN1
DN20
l1
45
z1
24
DN2
DN20
l2
14
n2
4
k2
75
b2
14
d2-2
14
D2
105
d2
item number
11571size
28xDN25 PN16
d1
28.0
DN1
DN25
l1
49
z1
26
DN2
DN25
l2
16
n2
4
k2
85
b2
16
d2-2
14
D2
115
d2
item number
11572size
35xDN32 PN16
d1
35.0
DN1
DN32
l1
51
z1
26
DN2
DN32
l2
17
n2
4
k2
100
b2
18
d2-2
18
D2
140
d2
item number
11680size
42xDN40 PN16
d1
42.0
DN1
DN40
l1
59
z1
29
DN2
DN40
l2
18
n2
4
k2
110
b2
18
d2-2
18
D2
150
d2
item number
11681size
54xDN50 PN16
d1
54.0
DN1
DN50
l1
69
z1
34
DN2
DN50
l2
18
n2
4
k2
125
b2
18
d2-2
18
D2
165
d2
item number
20412size
76.1xDN65 PN16
d1
76.1
DN1
DN65
l1
108
z1
53
DN2
DN65
l2
18
n2
4
k2
145
b2
18
d2-2
18
D2
185
d2
item number
20413size
88.9xDN80 PN16
d1
88.9
DN1
DN80
l1
127
z1
64
DN2
DN80
l2
20
n2
8
k2
160
b2
20
d2-2
18
D2
200
d2
item number
20414size
108xDN100 PN16
d1
108.0
DN1
DN100
l1
147
z1
70
DN2
DN100
l2
20
n2
8
k2
180
b2
20
d2-2
18
D2
220
d2
item number
11472size
PN16 139.7 DN125
d1
139.7
DN1
DN125
l1
138
z1
250
DN2
5" (DN125)
l2
n2
8
k2
210
b2
d2-2
18
D2
250
d2
139.7
item number
11473size
PN16 168.3 DN150
d1
168.3
DN1
DN150
l1
171
z1
54
DN2
6" (DN150)
l2
n2
8
k2
240
b2
d2-2
22
D2
285
d2
168.3
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
straight
connection type
press (M), flange
pressure rating (PN)
PN 16
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
brand
VSH
series
XPress Stainless
max operating pressure liquid
16 bar
max medium temperature
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Flange
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
