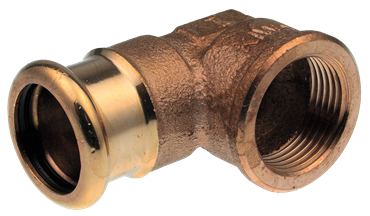

VSH XPress Copper angle adapter 90° (press x female thread)

group: S14

The VSH XPress S14 is a gunmetal 90° angle adapter with a press and a female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.insert stop: stop edge for pipe endprovided with all relevant approvalsLeak Before Pressed-functionclear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ATG

ATG

BSI Kitemark

BSI Kitemark

DNV-GL

DNV-GL

DVGW Wasser

DVGW Wasser

KIWA

KIWA

ÖVGW Wasser

ÖVGW Wasser

QB (CSTBat)

QB (CSTBat)

RISE

RISE

SINTEF

SINTEF

ÜA

ÜA

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

slw0

item number

38345

size

12xRp1/2"

d1

12.0

DN1

DN10

l1

39

z1

22

d2

21.3

DN2

1/2" (DN15)

l2

20

z2

7

slw0

26

item number

38351

size

15xRp1/2"

d1

15.0

DN1

DN12

l1

41

z1

21

d2

21.3

DN2

1/2" (DN15)

l2

23

z2

12

slw0

18

item number

38344

size

15xRp3/4"

d1

15.0

DN1

DN12

l1

36

z1

16

d2

26.9

DN2

3/4" (DN20)

l2

29

z2

13

slw0

31

item number

38348

size

18xRp1/2"

d1

18.0

DN1

DN15

l1

41

z1

21

d2

21.3

DN2

1/2" (DN15)

l2

24

z2

14

slw0

21

item number

38349

size

18xRp3/4"

d1

18.0

DN1

DN15

l1

52

z1

32

d2

26.9

DN2

3/4" (DN20)

l2

25

z2

12

slw0

21

item number

38350

size

22xRp1/2"

d1

22.0

DN1

DN20

l1

37

z1

16

d2

21.3

DN2

1/2" (DN15)

l2

32

z2

13

slw0

25

item number

38353

size

22xRp3/4"

d1

22.0

DN1

DN20

l1

45

z1

24

d2

26.9

DN2

3/4" (DN20)

l2

27

z2

11

slw0

25

item number

38354

size

28xRp1"

d1

28.0

DN1

DN25

l1

51

z1

28

d2

33.7

DN2

1" (DN25)

l2

33

z2

14

slw0

33

item number

38355

size

35xRp1 1/4"

d1

35.0

DN1

DN32

l1

55

z1

29

d2

42.4

DN2

1 1/4" (DN32)

l2

45

z2

21

slw0

46

item number

38356

size

42xRp1 1/2"

d1

42.0

DN1

DN40

l1

63

z1

35

d2

48.3

DN2

1 1/2" (DN40)

l2

52

z2

26

slw0

53

item number

38357

size

54xRp2"

d1

54.0

DN1

DN50

l1

74

z1

42

d2

60.3

DN2

2" (DN50)

l2

60

z2

33

slw0

65

technical drawing for product

characteristics

color

copper

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Elbow, reducer (90º)

connection type

press (M), Rp - female thread cylindrical (BSPT)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper

product type

6090G

scip

966cd6bc-74ae-47a8-951b-016935a13ff8

label

value

label

Material connection 1

value

Bronze

label

Material quality connection 1

value

CuSn5Zn5Pb2

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Material quality connection 2

value

CuSn5Zn5Pb2

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
