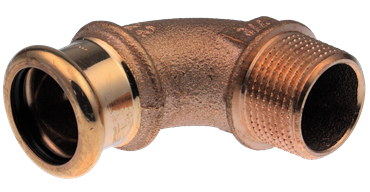

VSH XPress Copper elbow 90° (press x male thread)

group: S13

The VSH XPress S13 is a gunmetal 90° elbow with a press and a male thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.insert stop: stop edge for pipe endprovided with all relevant approvalsLeak Before Pressed-functionclear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ATG

ATG

BSI Kitemark

BSI Kitemark

DNV-GL

DNV-GL

DVGW Wasser

DVGW Wasser

KIWA

KIWA

ÖVGW Wasser

ÖVGW Wasser

QB (CSTBat)

QB (CSTBat)

RISE

RISE

SINTEF

SINTEF

ÜA

ÜA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

38370

size

12xR1/2"

dimensions

20x37x47 mm

weight

0.07 kg

packaging

bag (5 pce)

gtin

05022050197870

item number

38339

size

15xR3/8"

dimensions

20x35x50 mm

weight

0.07 kg

packaging

bag (5 pce)

gtin

05022050124494

item number

38333

size

15xR1/2"

dimensions

20x45x50 mm

weight

0.08 kg

packaging

bag (10 pce)

gtin

05022050014061

item number

38372

size

18xR3/4"

dimensions

25x40x65 mm

weight

0.1 kg

packaging

bag (5 pce)

gtin

05022050198303

item number

38334

size

22xR3/4"

dimensions

30x60x65 mm

weight

0.14 kg

packaging

bag (5 pce)

gtin

05022050014078

item number

38335

size

28xR1"

dimensions

35x75x80 mm

weight

0.25 kg

packaging

bag (5 pce)

gtin

05022050014085

item number

38336

size

35xR1 1/4"

dimensions

45x70x75 mm

weight

0.32 kg

packaging

bag (5 pce)

gtin

05022050014092

item number

38337

size

42xR1 1/2"

dimensions

50x75x110 mm

weight

0.46 kg

packaging

bag (1 pce)

gtin

05022050383372

item number

38338

size

54xR2"

dimensions

65x95x125 mm

weight

0.69 kg

packaging

bag (1 pce)

gtin

05022050383389

item number

size

d1

DN1

l1

z1

d2

DN2

l2

slw2

radius

angle

item number

38370

size

12xR1/2"

d1

12.0

DN1

DN10

l1

40

z1

23

d2

21.3

DN2

1/2" (DN15)

l2

18

slw2

26

radius

14

angle

90

item number

38339

size

15xR3/8"

d1

15.0

DN1

DN12

l1

43

z1

12

d2

17.2

DN2

3/8" (DN10)

l2

18

slw2

18

radius

18

angle

90

item number

38333

size

15xR1/2"

d1

15.0

DN1

DN12

l1

38

z1

19

d2

21.3

DN2

1/2" (DN15)

l2

26

slw2

18

radius

18

angle

90

item number

38372

size

18xR3/4"

d1

18.0

DN1

DN15

l1

47

z1

18

d2

26.9

DN2

3/4" (DN20)

l2

22

slw2

25

radius

22

angle

90

item number

38334

size

22xR3/4"

d1

22.0

DN1

DN20

l1

47

z1

28

d2

26.9

DN2

3/4" (DN20)

l2

34

slw2

25

radius

26

angle

90

item number

38335

size

28xR1"

d1

28.0

DN1

DN25

l1

58

z1

36

d2

33.7

DN2

1" (DN25)

l2

43

slw2

33

radius

34

angle

90

item number

38336

size

35xR1 1/4"

d1

35.0

DN1

DN32

l1

55

z1

30

d2

42.4

DN2

1 1/4" (DN32)

l2

34

slw2

40

radius

42

angle

90

item number

38337

size

42xR1 1/2"

d1

42.0

DN1

DN40

l1

62

z1

32

d2

48.3

DN2

1 1/2" (DN40)

l2

38

slw2

50

radius

50

angle

90

item number

38338

size

54xR2"

d1

54.0

DN1

DN50

l1

70

z1

35

d2

60.3

DN2

2" (DN50)

l2

47

slw2

60

radius

65

angle

90

technical drawing for product

characteristics

color

copper

materials

bronze (EN CC499K)

finishing

none

shape

Bend, reducer (90º)

connection type

press (M), R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper

product type

6092G

UNSPS

40172103

scip

966cd6bc-74ae-47a8-951b-016935a13ff8

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

110 °C

peak medium temperature

135 °C

image for Diagram

diagram | png

Diagram

image for 6092G

image | png

6092G

installation- & maintenance document | pdf

VSH XPress installation instructions

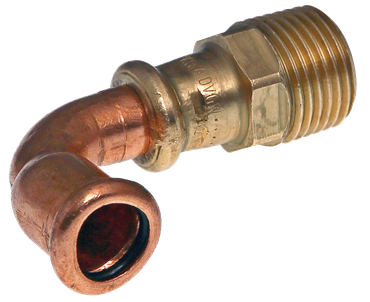

image for 4800939

image | png

4800939

image for 4800972

image | png

4800972

link to sheet | pdf

MSDS_VSH_XPress_Copper

certifications | pdf

VSH XPress Copper RISE 12-108 mm SE

certifications | pdf

VSH_XPress_Copper_WRAS

certifications | pdf

XPress Copper BSI

certifications | pdf

XPress Copper DVGW Water

certifications | pdf

XPress Copper KIWA

certifications | pdf

XPress_Copper_ATG

certifications | pdf

XPress_Copper_QB

certifications | pdf

XPress_Copper_SINTEF

certifications | pdf

XPress_Copper_Water_OVGW

certifications | pdf

XPress_DNV

certifications | pdf

VSH XPress Copper RISE 12-108 mm EN

label

value

label

Material connection 1

value

Bronze

label

Material quality connection 1

value

CuSn5Zn5Pb2

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Material quality connection 2

value

CuSn5Zn5Pb2

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

38370

carbon footprint (A-C) embodied carbon

0.37kgCO2e

data source

TM65

item number

38339

carbon footprint (A-C) embodied carbon

0.37kgCO2e

data source

TM65

item number

38333

carbon footprint (A-C) embodied carbon

0.42kgCO2e

data source

TM65

item number

38372

carbon footprint (A-C) embodied carbon

0.57kgCO2e

data source

TM65

item number

38334

carbon footprint (A-C) embodied carbon

0.75kgCO2e

data source

TM65

item number

38335

carbon footprint (A-C) embodied carbon

1.37kgCO2e

data source

TM65

item number

38336

carbon footprint (A-C) embodied carbon

1.79kgCO2e

data source

TM65

item number

38337

carbon footprint (A-C) embodied carbon

2.53kgCO2e

data source

TM65

item number

38338

carbon footprint (A-C) embodied carbon

3.82kgCO2e

data source

TM65
