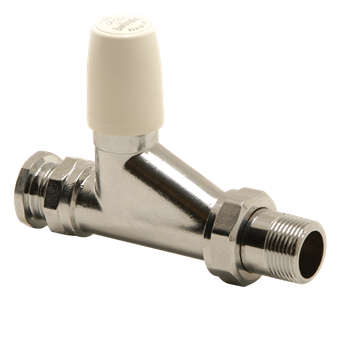

Straight Pattern

group: 98CPLS

The Pegler Belmont 98CPLS is a straight pattern manual Lock shield with a chrome plated body. This is valve uses ‘no drain system’ design solution which allows the Spindles ‘O’ ring to be removed and changed with the system full of water, this capability allows the whole headwork to be changed without draining using a gland removal tool allowing minimal downtime reducing cost and time on site.
  • Suits a wide range of commercial applications
  • Suitable for copper or iron pipe connections
  • Serviceable without draining the system
  • Approved to BS 2767-10
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    l1

    z1

    l2

    z2

    item number

    681008

    size

    15x1/2xR1/2

    l1

    40

    z1

    15

    l2

    65

    z2

    45

    item number

    681011

    size

    22x3/4xR3/4

    l1

    40

    z1

    15

    l2

    65

    z2

    65

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Belmont Lockshield

    product type

    98CPLS

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for 98CPLS

    image | png

    98CPLS

    certifications | pdf

    Pegler_Radiator_valve_KM_07441

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    label

    Length of connection 1

    value

    40mm

    label

    Length of connection 1 (imperial)

    value

    1.57"

    label

    Working length connection 1

    value

    15mm

    label

    Working length connection 1 (imperial)

    value

    0.59"

    label

    Length of connection 2

    value

    65mm

    label

    Length of connection 2 (imperial)

    value

    2.56"

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    681008

    carbon footprint (A-C) embodied carbon

    1.42kgCO2e

    data source

    TM65

    item number

    681011

    carbon footprint (A-C) embodied carbon

    1.95kgCO2e

    data source

    TM65
