Pegler Terrier Wheelhandle Radiator Valve Angle Pattern

group: 97WH

The Pegler Belmont 97WH is an Angle pattern manual wheel handle radiator valve. This is valve uses ‘no drain system’ design solution which allows the Spindles ‘O’ ring to be removed and changed with the system full of water, this capability allows the whole headwork to be changed without draining using a gland removal tool allowing minimal downtime reducing cost and time on site.
  • Suitable for copper or iron pipe connections
  • Suits a wide range of commercial applications
  • Serviceable without draining the system
  • Approved to BS 2767-10
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    680001

    size

    15x1/2xR1/2

    dimensions

    20x65x100 mm

    weight

    0.29 kg

    packaging

    bag (1 pce)

    gtin

    05013866017896

    item number

    680004

    size

    22x3/4xR3/4

    dimensions

    30x85x110 mm

    weight

    0.4 kg

    packaging

    bag (1 pce)

    gtin

    05013866017926

    item number

    size

    l1

    z1

    l2

    z2

    item number

    680001

    size

    15x1/2xR1/2

    l1

    35

    z1

    11

    l2

    52

    z2

    32

    item number

    680004

    size

    22x3/4xR3/4

    l1

    40

    z1

    12

    l2

    64

    z2

    39

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    connection type

    compression, R - male thread gas conical (BSPT)

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Belmont MRV

    product type

    97WH

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

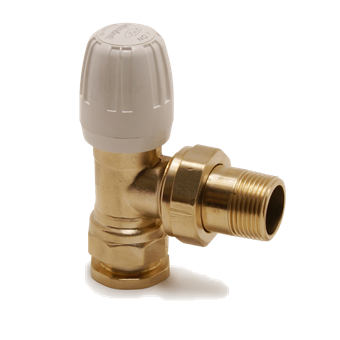

    image for COM97CPWH_Anlge_Pattern_TRV

    image | png

    COM97CPWH_Anlge_Pattern_TRV

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    Pegler_Radiator_valve_KM_07441

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    680001

    carbon footprint (A-C) embodied carbon

    1.08kgCO2e

    data source

    TM65

    item number

    680004

    carbon footprint (A-C) embodied carbon

    1.51kgCO2e

    data source

    TM65
