Angle Pattern

group: 97LS

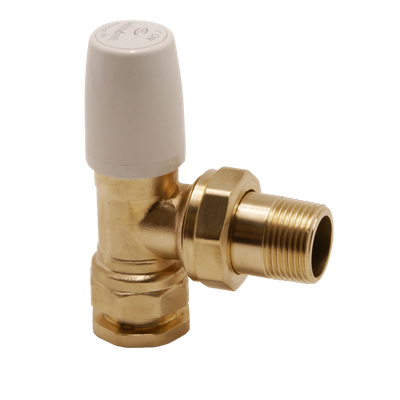

The Pegler Belmont 97LS is an Angle pattern Manual Lock shield. This is valve uses ‘no drain system’ design solution which allows the Spindles ‘O’ ring to be removed and changed with the system full of water, this capability allows the whole headwork to be changed without draining using a gland removal tool allowing minimal downtime reducing cost and time on site.

  • Suits a wide range of commercial applications
  • Suitable for copper or iron pipe connections
  • Serviceable without draining the system
  • Approved to BS 2767-10
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

item number

size

l1

z1

l2

z2

item number

680002

size

15x1/2xR1/2

l1

35

z1

11

l2

52

z2

32

item number

680005

size

22x3/4xR3/4

l1

40

z1

12

l2

64

z2

39

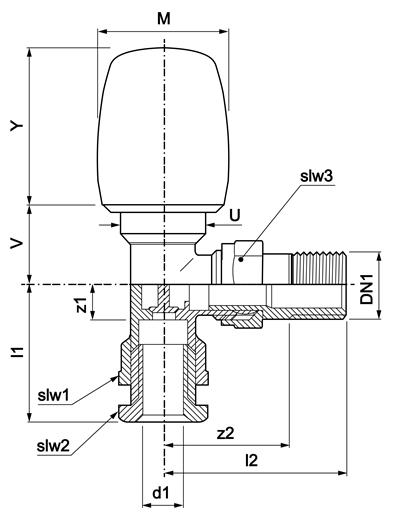

technical drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (MRV)

ETIM class

EC010136 Radiator valve

HS code

84818039

brand

Pegler

series

Belmont Lockshield

product type

97LS

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No
