radiator valves

lockshield radiator valve angle pattern for copper or iron

Product Image for lockshield radiator valve angle pattern for copper or iron
Product Image for lockshield radiator valve angle pattern for copper or iron

group: 97CPLS

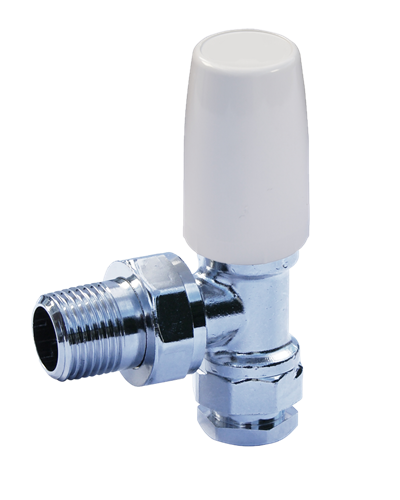

The Pegler Belmont 97CPLS is an Angle pattern Manual Lock shield with a chrome plated body. This is valve uses ‘no drain system’ design solution which allows the Spindles ‘O’ ring to be removed and changed with the system full of water, this capability allows the whole headwork to be changed without draining using a gland removal tool allowing minimal downtime reducing cost and time on site.
  • Suitable for copper or iron pipe connections
  • Suits a wide range of commercial applications
  • Serviceable without draining the system
  • Approved to BS 2767-10
    • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    show all
    show less

    segments

    commercial building

    commercial building

    show all
    show less

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    680008

    size

    15x1/2xR1/2

    dimensions

    69x32x98 mm

    weight

    0.28 kg

    packaging

    bag (1 pce)

    gtin

    05013866017964

    item number

    680011

    size

    22x3/4xR3/4

    dimensions

    30x80x110 mm

    weight

    0.4 kg

    packaging

    bag (1 pce)

    gtin

    05013866017995

    item number

    size

    DN1

    l1

    z1

    slw1

    d2

    l2

    z2

    slw2

    a

    item number

    680008

    size

    15x1/2xR1/2

    DN1

    1/2" (DN15)

    l1

    35

    z1

    37

    slw1

    30

    d2

    15.0

    l2

    52

    z2

    24

    slw2

    26

    a

    90

    item number

    680011

    size

    22x3/4xR3/4

    DN1

    l1

    40

    z1

    12

    slw1

    d2

    l2

    64

    z2

    39

    slw2

    a

    90

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    sealing

    EPDM

    general

    product group

    radiator valves (MRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818039

    brand

    Pegler

    series

    Belmont Lockshield

    product type

    97CPLS

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for 97CPLS

    image | png

    97CPLS

    save to my IPS
    image for Diagram

    diagram | jpg

    Diagram

    save to my IPS

    certifications | pdf

    Pegler_Radiator_valve_KM_07441

    save to my IPS

    certifications | pdf

    TM65 Embodied Carbon Declaration

    save to my IPS

    label

    value

    label

    ETIM class

    value

    EC010136 Radiator valve

    label

    Housing material

    value

    Brass

    label

    Shape

    value

    Right-angled

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    680008

    carbon footprint (A-C) embodied carbon

    1.08kgCO2e

    data source

    TM65

    item number

    680011

    carbon footprint (A-C) embodied carbon

    1.51kgCO2e

    data source

    TM65
