Pegler ProFlow DRV commissioning valve (2 x flange)

group: 901XS

The Pegler Proflow 900XS is a double regulating valve with flanged connection technology, it is a cast iron DRV butterfly valve with a painted finish, it is intended for the isolation and balancing of pipework and equipment in HVAC applications the valve is gear operated and has a quarter turn operation by a wheel handle. It incorporates a double regulating feature for isolation and the setting of a maximum flow rate. Available in Sizes DN125 to DN300.

  • geared quarter turn wheel handle
  • cast iron butterfly valve
  • flanged connection technology
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

15063

size

DN300

dimensions

550x150x400 mm

weight

53 kg

packaging

unpackaged (1 pce)

gtin

05708537255638

item number

size

DN1

DN2

l2

n2

k2

d2-2

D2

M

E

H

Y

U

D1

a

item number

15063

size

DN300

DN1

DN300

DN2

DN300

l2

39

n2

12

k2

410

d2-2

26

D2

460

M

150

E

131

H

485

Y

100

U

166

D1

460

a

90

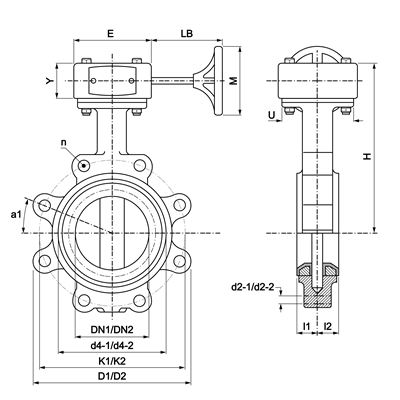

technical drawing for product

characteristics

color

grey

materials

cast iron (ASTM A126 Grade B)

finishing

powder

shape

straight (0º)

connection type

flange

pressure rating (PN)

PN 16

sealing

EPDM, PTFE

general

product group

valves (static balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818081

brand

Pegler

series

ProFlow Static Venturi

product type

901XS

UNSPS

40141609

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

120 °C

peak medium temperature

120 °C

Kvs-value

7761

image for 901XS

image | png

901XS

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Diameter bolt hole

value

26

label

Diameter bolt hole (imperial)

value

1.02"

label

Housing material

value

Cast iron

label

Surface protection

value

Coated

label

Nominal diameter

value

DN 300

label

Connection 1

value

Flange

label

With coupling connection 1

value

No

label

Connection 2

value

Flange

label

With coupling connection 2

value

No

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-20°C - 120°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 248°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Static

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

No

label

Kvs value

value

7761

label

Length of connection 2

value

39mm

label

Length of connection 2 (imperial)

value

1.54"

label

Height operating element

value

100mm

label

Height operating element (imperial)

value

3.94"

label

Diameter handwheel

value

150mm

label

Diameter handwheel (imperial)

value

5.91"

label

Spindle angle

value

90°

label

Spindle angle (imperial)

value

3.54"

label

With insulation

value

No
