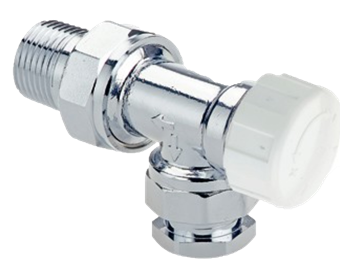

vb1390 angle horizontal preset

group: 1390/4P

The Pegler Belmont 1390/4P is an angle pattern horizontal concealed lock shield radiator valve which comes pre-set. This valve requires an Allen key too adjust the flow and provides tamper resistance which prevents accidental or vandal adjustment in public areas and ensures protection for system balance.
  • Suits a wide range of commercial applications
  • Can be serviced without draining
  • Concealed lock shield with Allen key adjustment
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    segments

    commercial building

    commercial building

    approvals

    BSI Kitemark

    BSI Kitemark

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    686030

    size

    15x1/2xR1/2

    dimensions

    35x50x90 mm

    weight

    0.23 kg

    packaging

    bag (1 pce)

    gtin

    05013866033636

    item number

    686080

    size

    15x1/2xR1/2

    dimensions

    40x50x85 mm

    weight

    0.23 kg

    packaging

    bag (1 pce)

    gtin

    05013866075292

    item number

    686081

    size

    22x3/4xR3/4

    dimensions

    35x60x100 mm

    weight

    0.36 kg

    packaging

    bag (1 pce)

    gtin

    05013866075308

    item number

    686031

    size

    22x3/4xR3/4

    dimensions

    30x55x100 mm

    weight

    0.35 kg

    packaging

    bag (1 pce)

    gtin

    05013866033643

    item number

    size

    item number

    686030

    size

    15x1/2xR1/2

    item number

    686080

    size

    15x1/2xR1/2

    item number

    686081

    size

    22x3/4xR3/4

    item number

    686031

    size

    22x3/4xR3/4

    technical drawing for product

    characteristics

    color

    chrome

    materials

    plastic, brass (CW617N, ABS)

    finishing

    polished chrome

    shape

    Elbow

    sealing

    EPDM

    general

    product group

    radiator valves (TRV)

    ETIM class

    EC010136 Radiator valve

    HS code

    84818031

    brand

    Pegler

    series

    Belmont TRV

    UNSPS

    40141609

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    4 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

    image for VB1390

    image | png

    VB1390

    certifications | pdf

    BSI Kitemark Pegler Thermostatic radiator valves

    certifications | pdf

    Pegler Thermostatic radiator valves Keymark

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Suitable for single pipe system

    value

    No

    label

    Suitable for two pipe system

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    686030

    carbon footprint (A-C) embodied carbon

    0.93kgCO2e

    data source

    TM65

    item number

    686080

    carbon footprint (A-C) embodied carbon

    0.92kgCO2e

    data source

    TM65

    item number

    686081

    carbon footprint (A-C) embodied carbon

    1.38kgCO2e

    data source

    TM65

    item number

    686031

    carbon footprint (A-C) embodied carbon

    1.39kgCO2e

    data source

    TM65
