item: 74703K
The Kuterlite K964 is a hexagonal screwed bush. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,
no applications available
no segments available
no approvals available
item

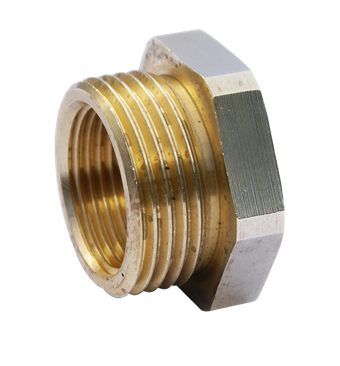

VSH Kuterlite K900 screw hexagon bush 1"xG3/4"
item number with gtin
74703K (05022050255600)
product number with gtin
74703K (05022050255488)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
K964 K964 - Screwed bush (hexagon)size
1"xG3/4"
weight
0.07 kg
dimensions
30x35x35 mm
packaging
bag (5 pce)
color
brass
materials
brass (CW602N (DZR))
finishing
none
connection type
R - male thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
Brass
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittingen (Brass)
HS code
74122000
brand
VSH
series
Kuterlite K900 Pro
product type
K964
scip
8959546f-c4a2-4234-89bb-61813ff739d7
carbon footprint (A-C) embodied carbon
0.05kgCO2e
data source
TM65
