item: 74007K
The Kuterlite K978AX is a compression nut for use with kuterlite compression ends. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,
no applications available
no segments available
no approvals available
item

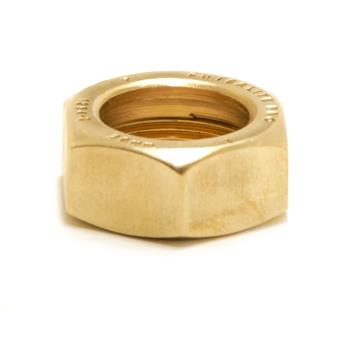

VSH Kuterlite Compression Nut 22 (18 TPI)
item number with gtin
74007K (05022050740298)
product number with gtin
74007K (05022050740250)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
22
weight
0.04 kg
dimensions
16x33x33 mm
packaging
bag (10 pce)
color
brass
materials
brass (CW617N)
finishing
none
pressure rating (PN)
PN 20
sealing
Brass
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
product group
fittingen (Brass)
ETIM class
EC010592 Coupling nutHS code
84819000
brand
VSH
series
Kuterlite K600
product type
K678A
scip
8959546f-c4a2-4234-89bb-61813ff739d7
label
value
label
etim-class
value
EC010592 Coupling nutlabel
Material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
carbon footprint (A-C) embodied carbon
0.16kgCO2e
data source
TM65
