item: 680009

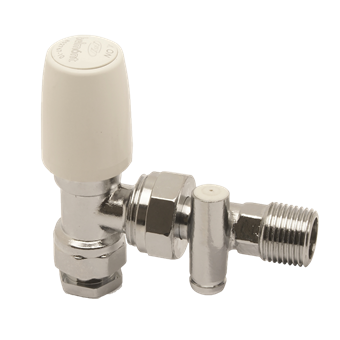

The Pegler Belmont 97CPDLS is an Angle pattern Manual Lock shield with a chrome plated body and drain valve. This is valve uses ‘no drain system’ design solution which allows the Spindles ‘O’ ring to be removed and changed with the system full of water, this capability allows the whole headwork to be changed without draining using a gland removal tool allowing minimal downtime reducing cost and time on site.
heating
commercial building
no approvals available
label
value
label
l1
value
33
label
z1
value
10
label
l2
value
88
label
z2
value
71
label
a
value
90
item
Pegler Belmont LS inc drain FM 15x1/2xR1/2 Cr
item number with gtin
680009 (05013866017971)
product number with gtin
680009 (05022050546746)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
97CPDLS 97CPDLS -size
15x1/2xR1/2
weight
0.35 kg
dimensions
40x100x100 mm
packaging
bag (1 pce)
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
radiator valves (EPDM)
ETIM class
EC010136 Radiator valveHS code
84818039
brand
Pegler
series
Belmont Lockshield
product type
97CPDLS
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Length of connection 1
value
33mm
label
Length of connection 1 (imperial)
value
1.3"
label
Working length connection 1
value
10mm
label
Working length connection 1 (imperial)
value
0.39"
label
Length of connection 2
value
88mm
label
Length of connection 2 (imperial)
value
3.46"
label
Working length connection 2
value
71mm
label
Working length connection 2 (imperial)
value
2.8"
label
Height
value
100mm
label
Height (imperial)
value
3.94"
carbon footprint (A-C) embodied carbon
1.36kgCO2e
data source
TM65
