item: 661209

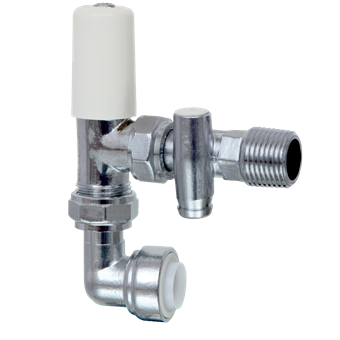

The Pegler Terrier 367PFCPDLS is a manually operated angle pattern Lock shield with a chrome plated body, built in drain valve and an integrated push fit connector. It has screw down handles for anti-tamper and safety with a long-life glad packing with rise spindle for extended reliability
heating
commercial building
no approvals available
label
value
label
DN1
value
DN12
label
DN2
value
DN15
item
Pegler Terrier LS inc drain and elbow FM 15x10xR1/2" Cr
item number with gtin
661209 (05013866077302)
product number with gtin
661209 (05022050553485)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
15x10xR1/2
weight
0.29 kg
dimensions
30x85x90 mm
packaging
bag (1 pce)
color
chrome
materials
brass, plastic (CW617N, ABS)
finishing
polished chrome
shape
Elbow
connection type
push, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 10
sealing
EPDM
max operating pressure liquid
10 bar
min. medium temperature
4 °C
max medium temperature
120 °C
peak medium temperature
120 °C
product group
appendages (EPDM)
ETIM class
EC010136 Radiator valveHS code
84818039
brand
Pegler
series
Terrier Domestic
product type
367PFECPDLS
UNSPS
40141609
label
value
label
etim-class
value
EC010136 Radiator valvelabel
Housing material
value
Brass
label
Shape
value
Right-angled
label
Suitable for single pipe system
value
No
label
Suitable for two pipe system
value
No
label
Height
value
90mm
label
Height (imperial)
value
3.54"
carbon footprint (A-C) embodied carbon
1.06kgCO2e
data source
TM65
