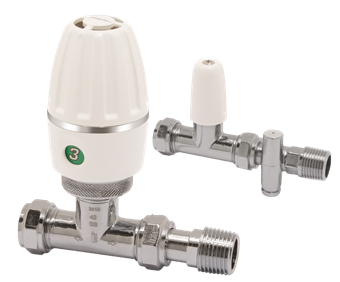

Pegler Terrier TRV and LS inc drain (pack) FM 15xR1/2" Cr

item: 631808

The Pegler Terrier T3TRV368DLSSTR is a pack containing a T3TRVSTR and a matching 368TCPDLS this set is a reliable, easy to operate, straight pattern thermostatic radiator valve set, which is designed for making your heating system more efficient by stopping the flow once the heat is not required, complete with an easy-to-read temperature setting for the visually impaired. It is proven to deliver annual cost savings through improved temperature control and without compromising on comfort.

  • Accurate and responsive performance due to Terriers unique hot and cold air cycle technology.
  • Energy saving by giving a faster temperature response with reduced hysteresis and ‘chimney’ effect and pure copper element sensor.
  • Easy operation with inclusive design with both visual and dexterity support through eco indicator, large grip with lower torque operation and intuitive temperature settings.
  • Practical and stylish design with subtle hint of the enclosed design, chrome accents, oversized colour coded setting window for easy identification all enclosed in a gloss white finish.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

BSI Kitemark

BSI Kitemark

label

value

label

DN1

value

DN12

label

l1

value

35

label

z1

value

11

label

DN2

value

DN12

label

l2

value

63

label

z2

value

49

drawing for product

characteristics

color

chrome

materials

plastic, brass (CW617N, ABS)

finishing

polished chrome

shape

Elbow

connection type

compression, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

radiator valves (TRV)

ETIM class

EC010136 Radiator valve

brand

Pegler

series

Terrier 3

product type

T3TRVCPDLSSTR

UNSPS

40141609

product info

item

Pegler Terrier TRV and LS inc drain (pack) FM 15xR1/2" Cr

item number with gtin

631808 (05022050500106)

product number with gtin

631808 (05022050586445)

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

item group

T3TRVCPDLSSTR - straight pattern thermostatic radiator valve vertical or horizontal mounting with (368t cpdls) matching drain off lockshield

size

15xR1/2

weight

0.56 kg

dimensions

71x83x87 mm

packaging

box (1 pce)

technical

max operating pressure liquid

10 bar

min. medium temperature

4 °C

max medium temperature

120 °C

peak medium temperature

120 °C

image for T3TRV368DLSSTR

image | png

T3TRV368DLSSTR

image for Diagram

diagram | jpg

Diagram

image for Diagram

diagram | jpg

Diagram

certifications | pdf

BSI Kitemark Pegler Thermostatic radiator valves

certifications | pdf

Pegler Thermostatic radiator valves Keymark

label

value

label

ETIM class

label

Housing material

value

Brass

label

Shape

value

Right-angled

label

Operation

value

Manually operated

label

Suitable for single pipe system

value

No

label

Suitable for two pipe system

value

No

label

Length of connection 1

value

35mm

label

Length of connection 1 (imperial)

value

1.38"

label

Working length connection 1

value

11mm

label

Working length connection 1 (imperial)

value

0.43"

label

Length of connection 2

value

63mm

label

Length of connection 2 (imperial)

value

2.48"

label

Working length connection 2

value

49mm

label

Working length connection 2 (imperial)

value

1.93"

label

Height

value

87mm

carbon footprint (A-C) embodied carbon

2.13kgCO2e

data source

TM65
