item: 43004K
The Kuterlite K911PX is a male coupling with a compression end and a male parallel thread. By using Kuterlite in your piping system you can install in easy to use heat free system. Kuterlite provides a piping system suitable for broad spectrum of applications across the domestic and commercial sectors,
potable water
heating
cooling
commercial building
KIWA
WRAS
BSI Kitemark KM 15121
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
straight
connection type
compression, R - male thread gas conical (BSPT)
sealing
Brass
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Kuterlite K900 Pro
product type
K911PX
UNSPS
40172601
scip
8959546f-c4a2-4234-89bb-61813ff739d7
item

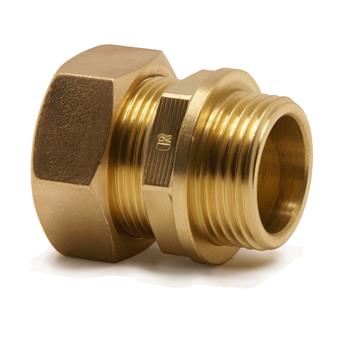

VSH Kuterlite K900 Pro coupling FM 28xG1"
item number with gtin
43004K (05022050090843)
product number with gtin
43004K (05022050090829)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
K911PX - Kuterlite Pro Male Coupling
size
28xG1"
weight
0.21 kg
dimensions
33x39x45 mm
packaging
bag (5 pce)
max operating pressure liquid
20 bar
min. medium temperature
-15 °C
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Compression ring
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Material sealing
value
Brass
label
With buffer stud
value
No
label
Length
value
33mm
label
Length (imperial)
value
1.3"
label
Medium temperature (continuous)
value
30°C - 90°C
label
Medium temperature (continuous) (imperial)
value
86°F - 194°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
carbon footprint (A-C) embodied carbon
1.8kgCO2e
data source
TM65
