item: 16361

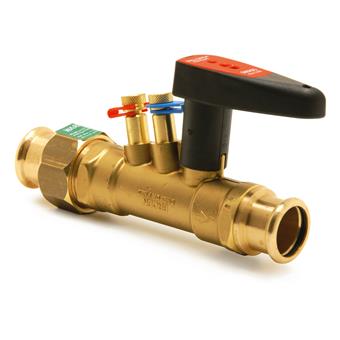

The VSH Xpress PSU900Sinlet is a Venturi Static balancing valve with a Xpress union inlet and a Xpress press-fit outlet connection. It is intended for the isolation and balancing with its quarter turn ball valve shut off function and venturi orifice. The venturi orifice allows for fast and accurate flow measurements while the robust grip handle provides easy control. The numeric position indicator assures optimal adjustment to the design flow. Type PSU900Sinlet valves are part of the VSH Xpress system and are available in 15-54mm sizes and ultra-low too fast flow.
heating
cooling
commercial building
industry
WRAS
label
value
label
d1
value
15.0
label
DN1
value
DN15
label
l1
value
51
label
z1
value
29
label
d2
value
15.0
label
DN2
value
DN15
label
l2
value
112
label
z2
value
92
label
M1
value
18
label
M2
value
75
label
Y
value
62
label
V
value
18
label
U
value
23
label
D1
value
24
label
a
value
90
color
bronze
materials
brass (CW602N (DZR))
finishing
none
shape
straight (0º)
connection type
press (M)
pressure rating (PN)
PN 16
sealing
PTFE
product group
valves (static balancing valves)
brand
VSH
series
XPress ProFlow Static Venturi
product type
PSU900SInlet
UNSPS
40141609
item
VSH XPress Proflow static venturi FODRV w. inlet union FF 15 (DN15) ULF
item number with gtin
16361 (05022050188342)
product number with gtin
16361 (05022050559043)
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
item group
PSU900SInlet
size
15 (DN15) ULF
weight
0.58 kg
dimensions
163x34x92 mm
packaging
bag (1 pce)
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
110 °C
peak medium temperature
110 °C
Kvs-value
0.23
Kv-value
0.027 - 0.126
